Nucleus-M: Wireless Lens Control System

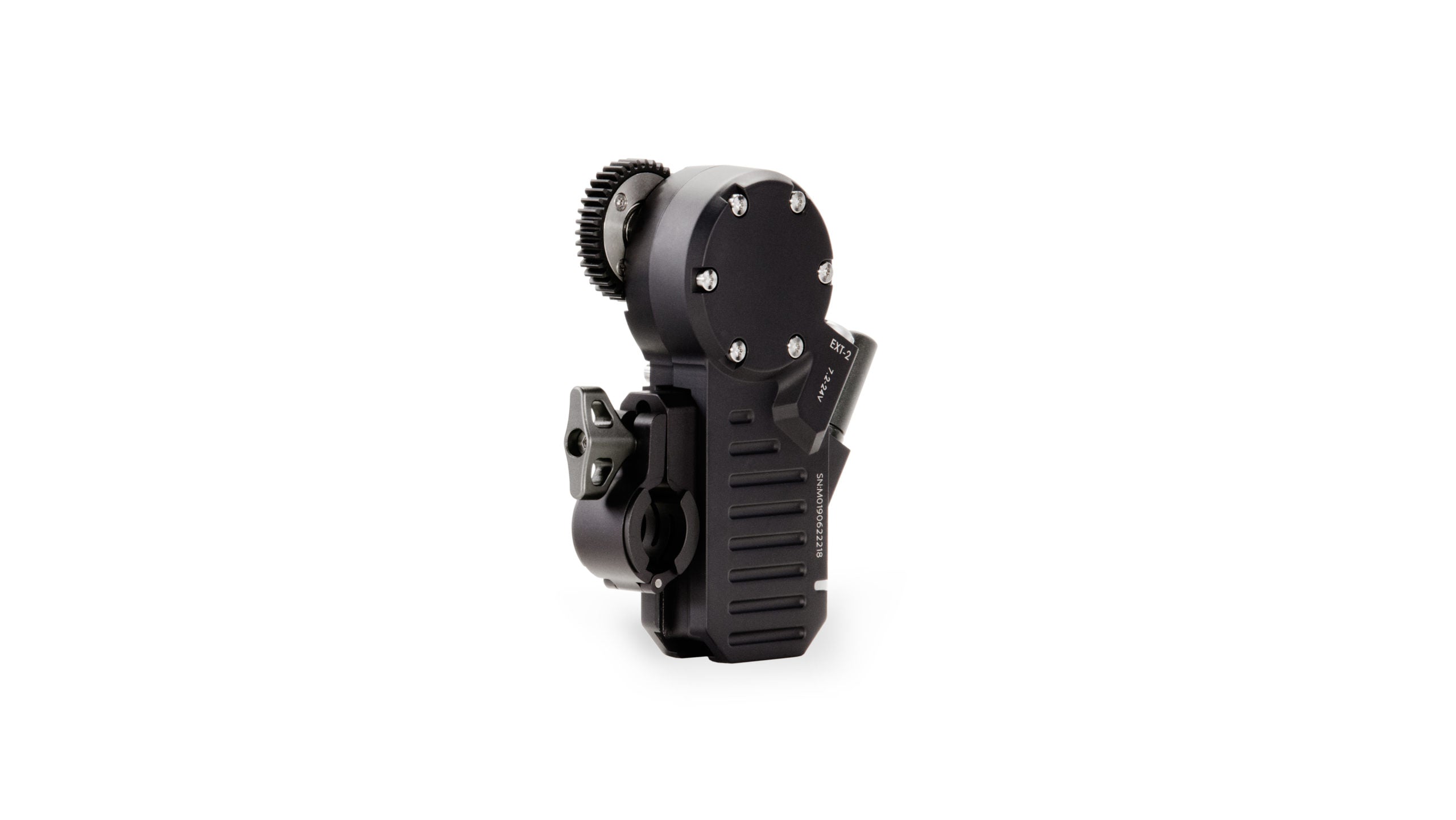

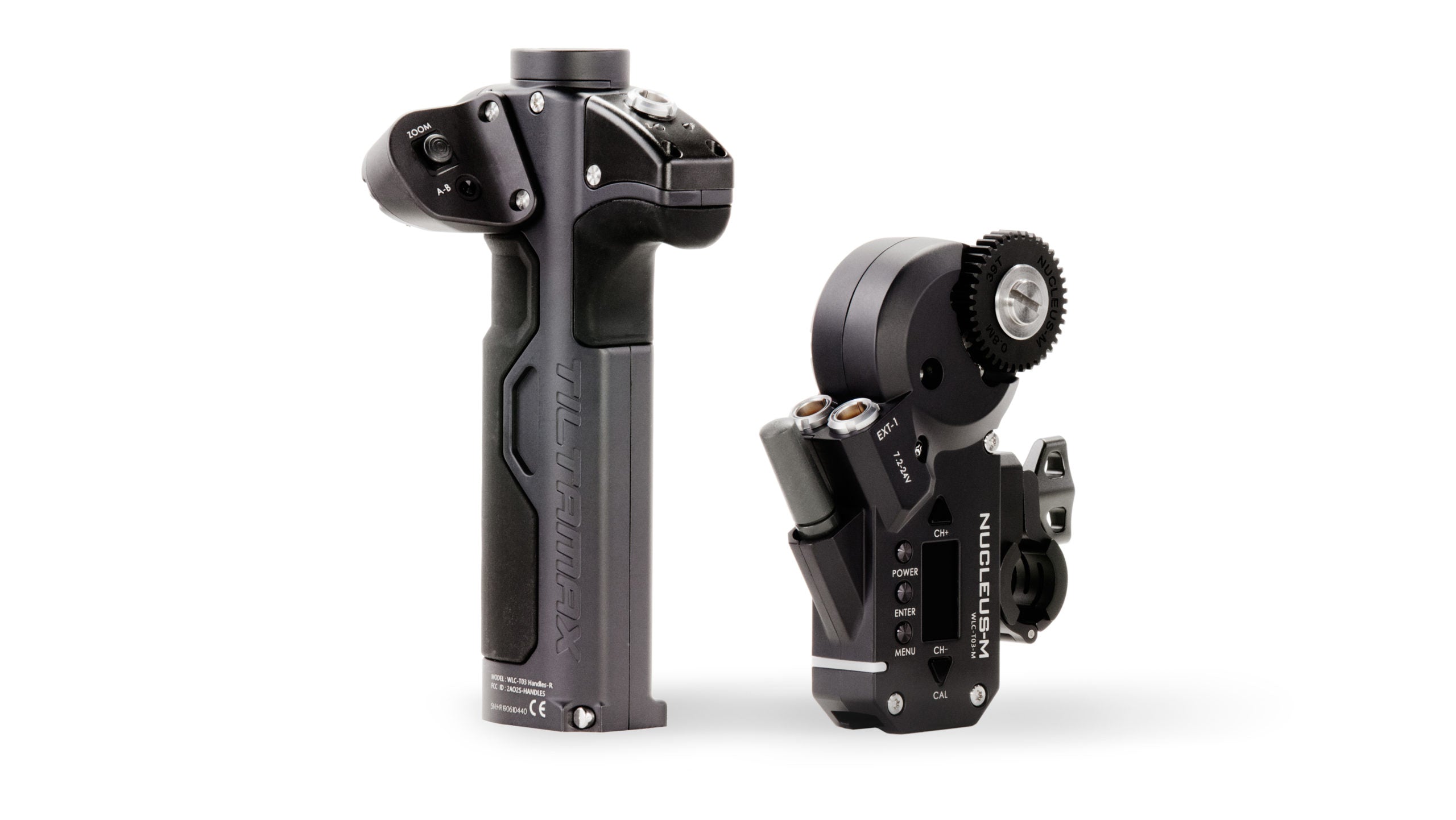

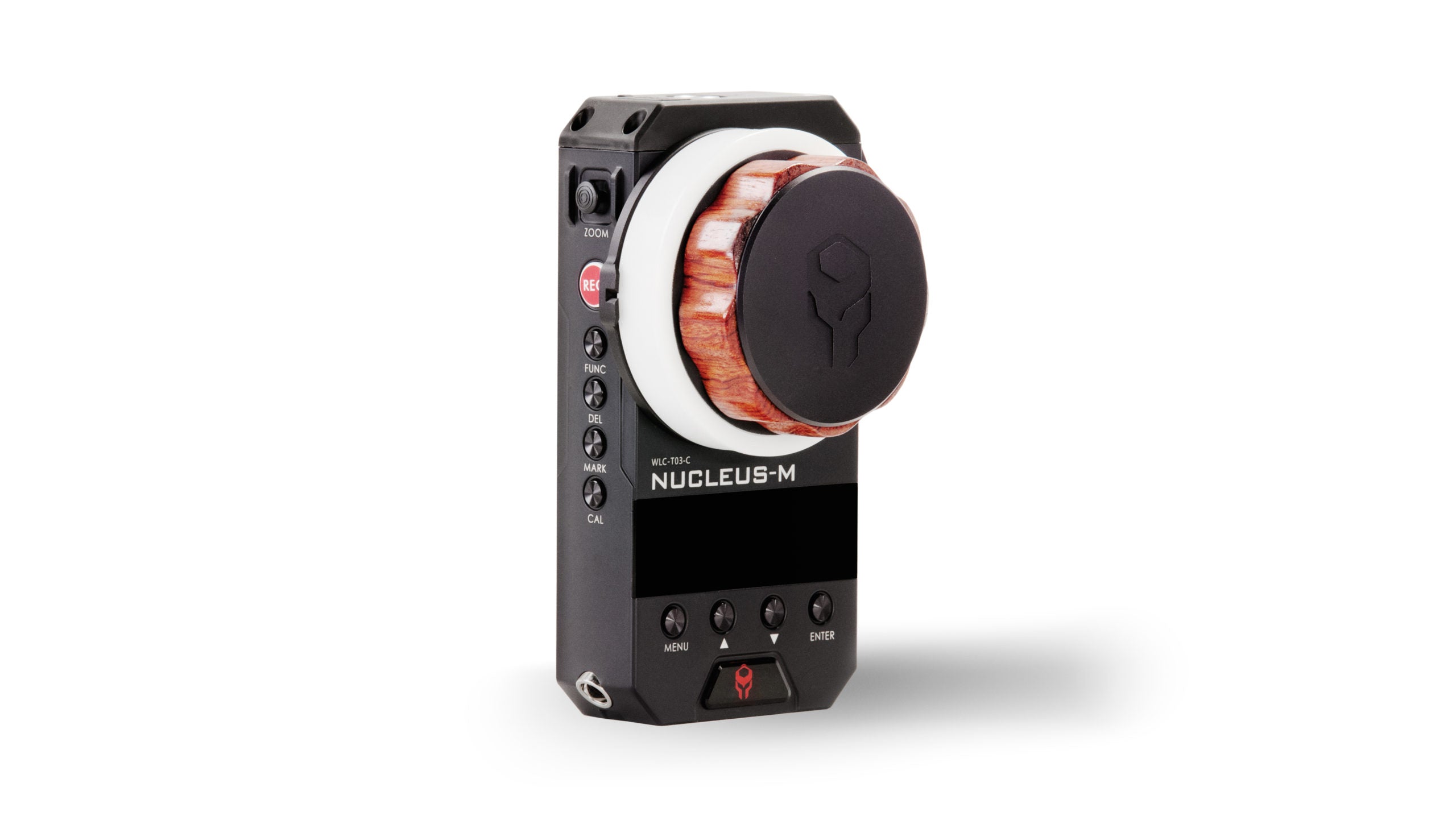

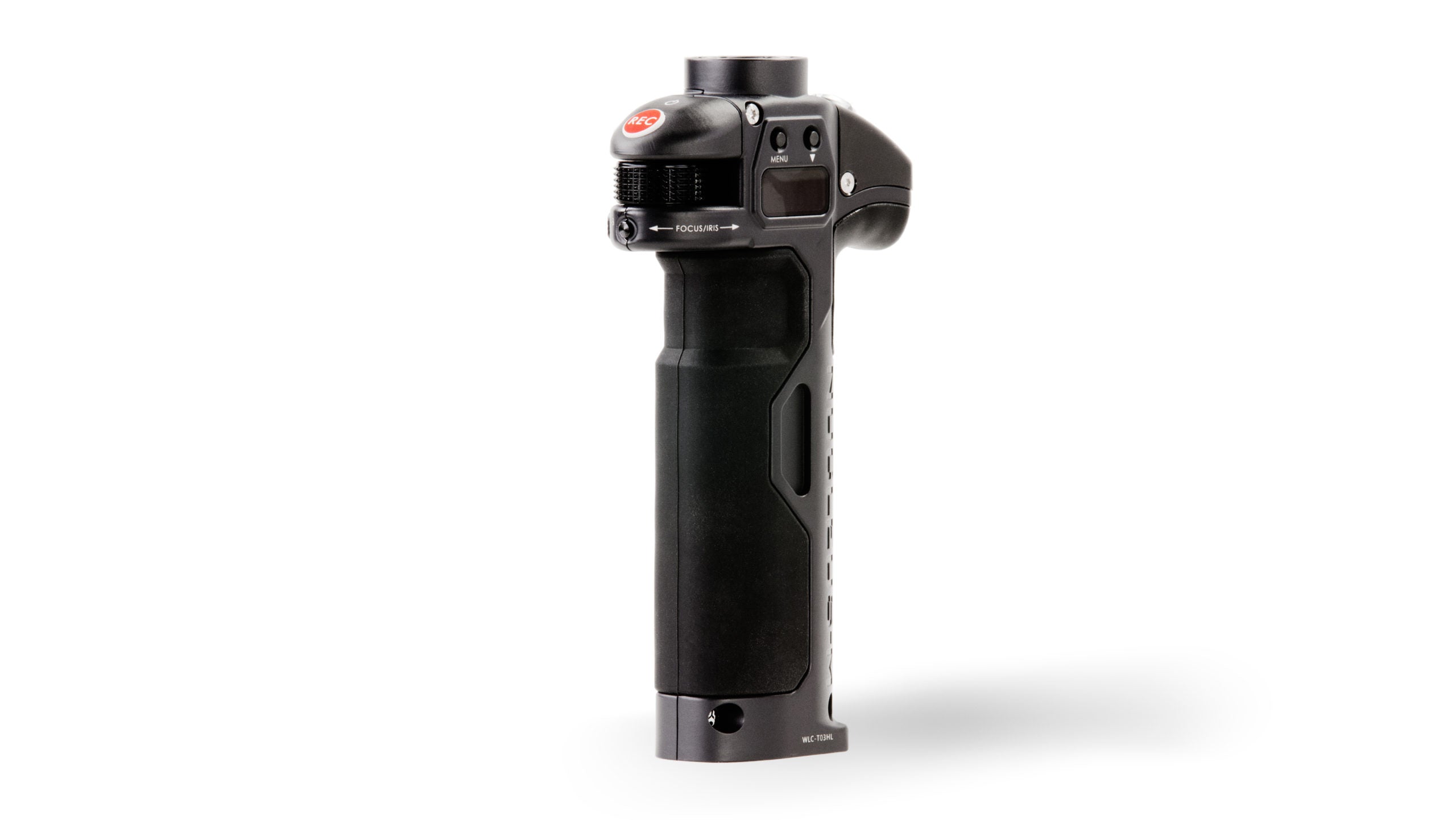

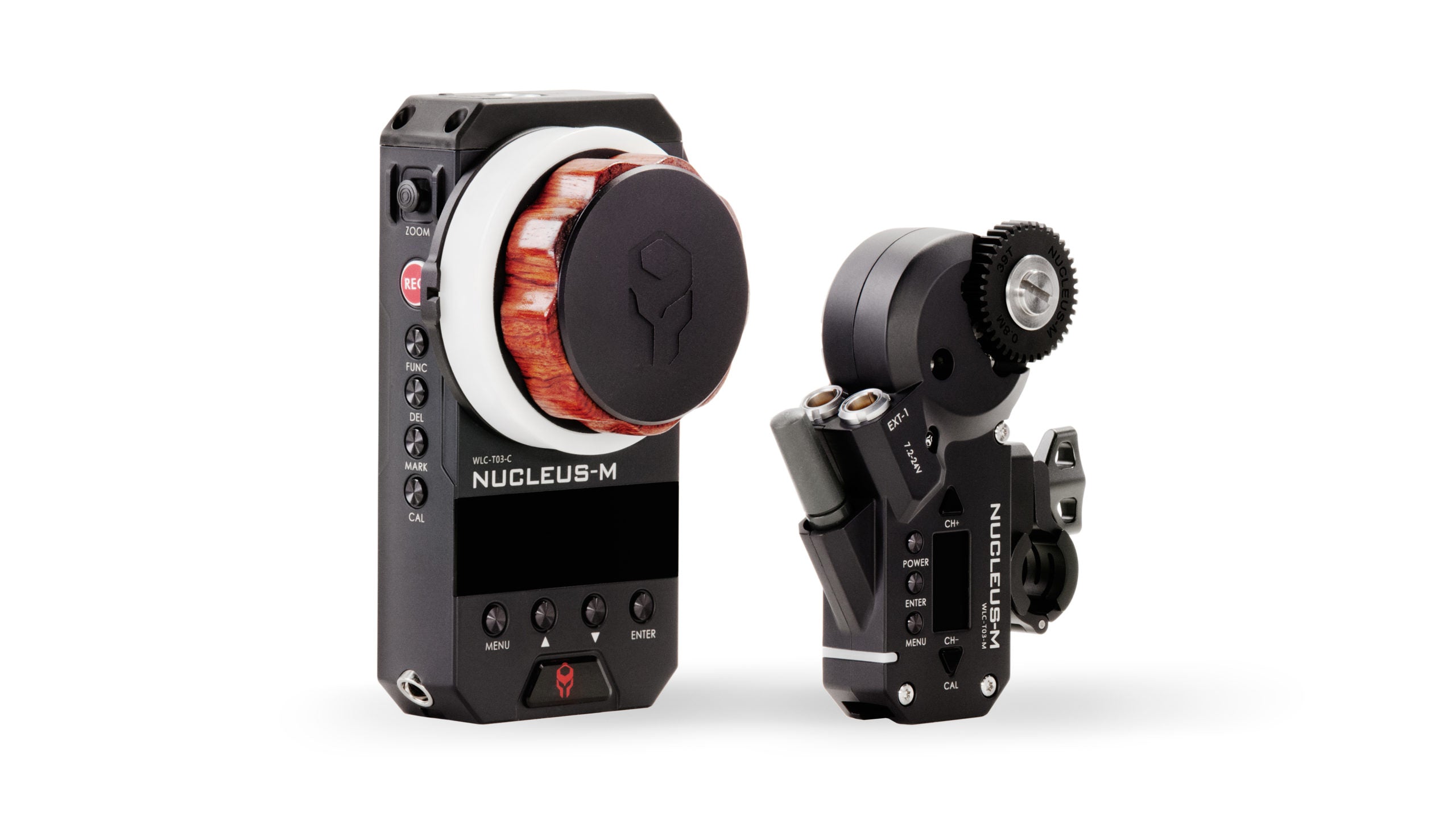

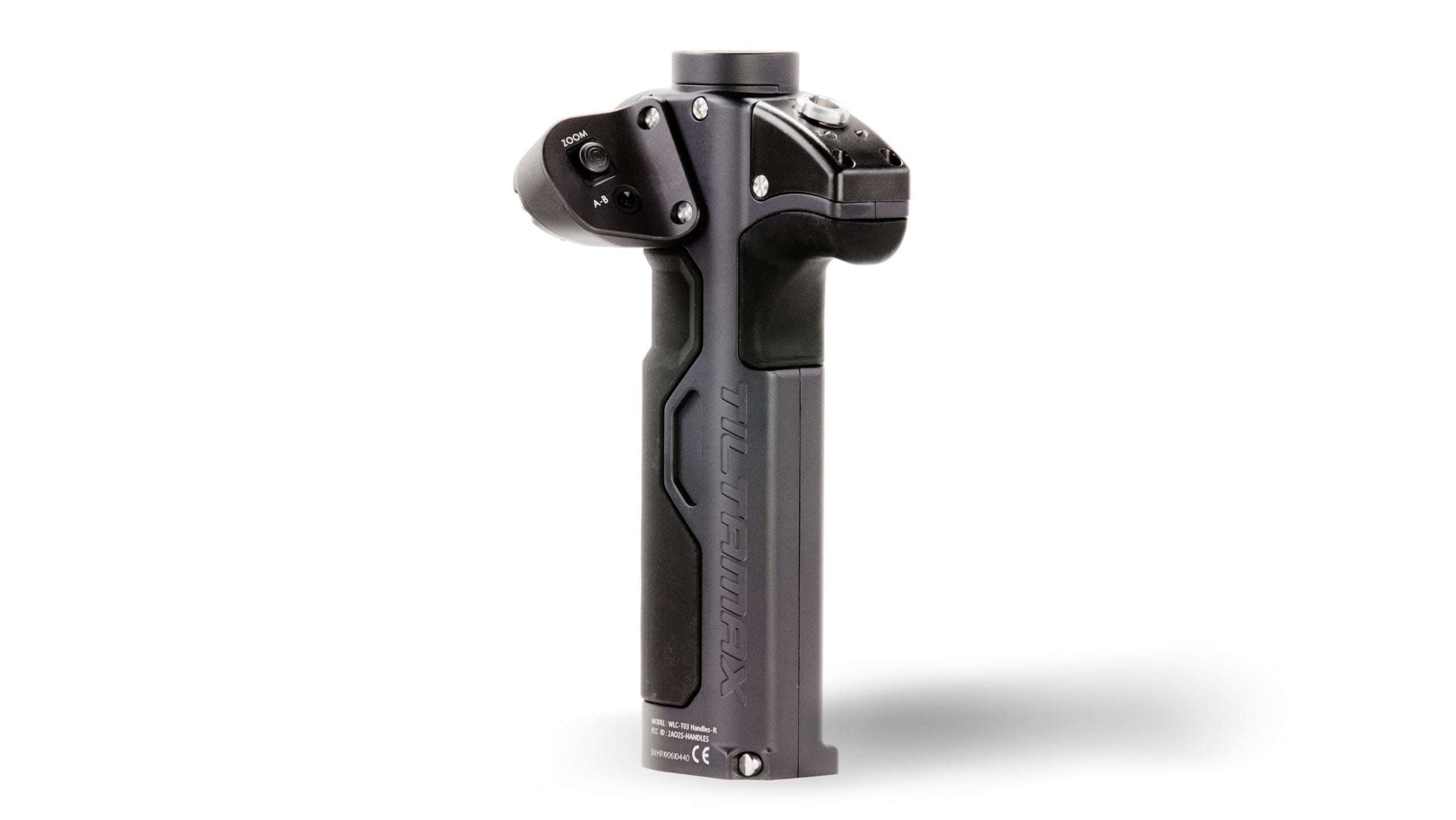

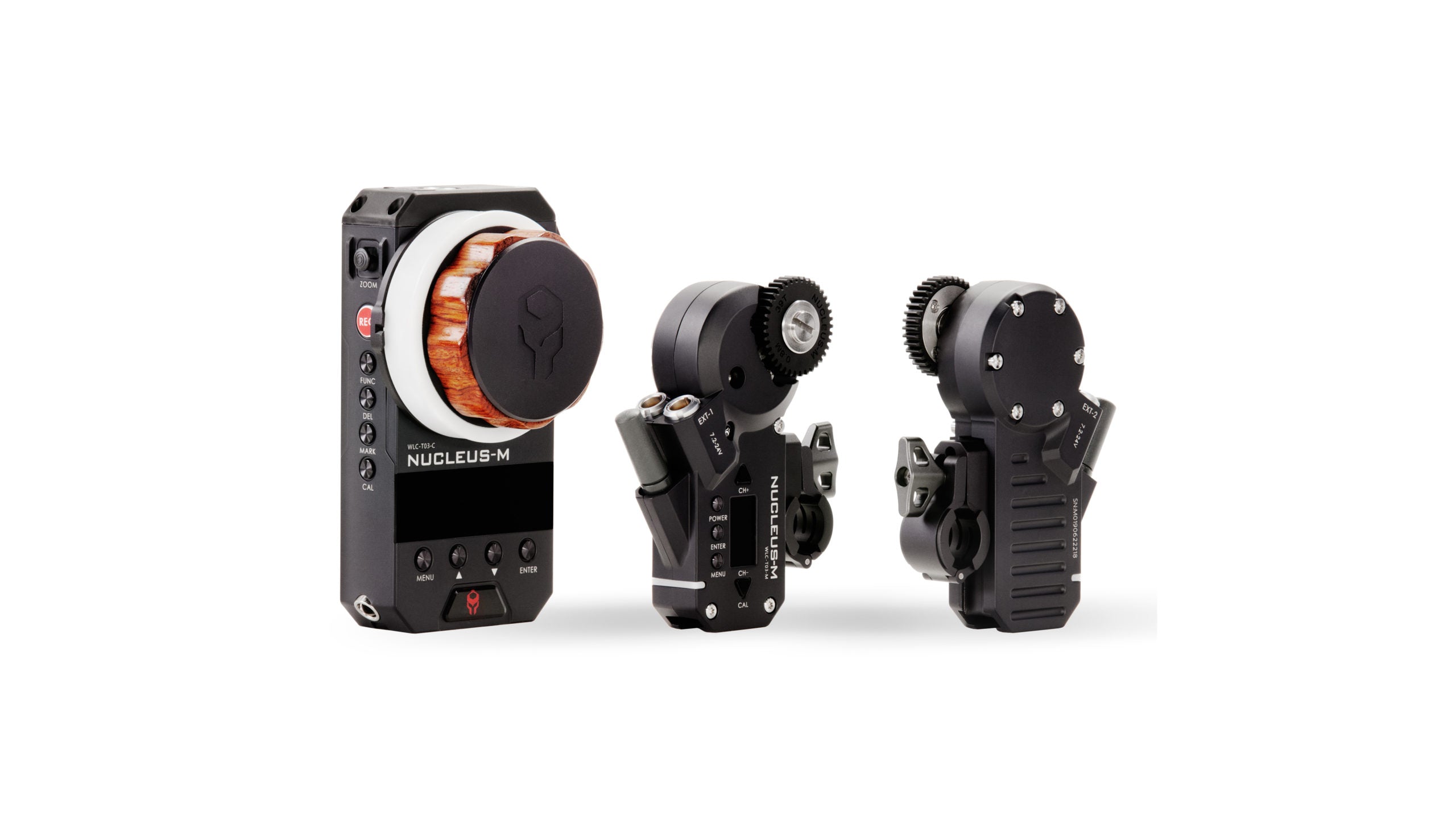

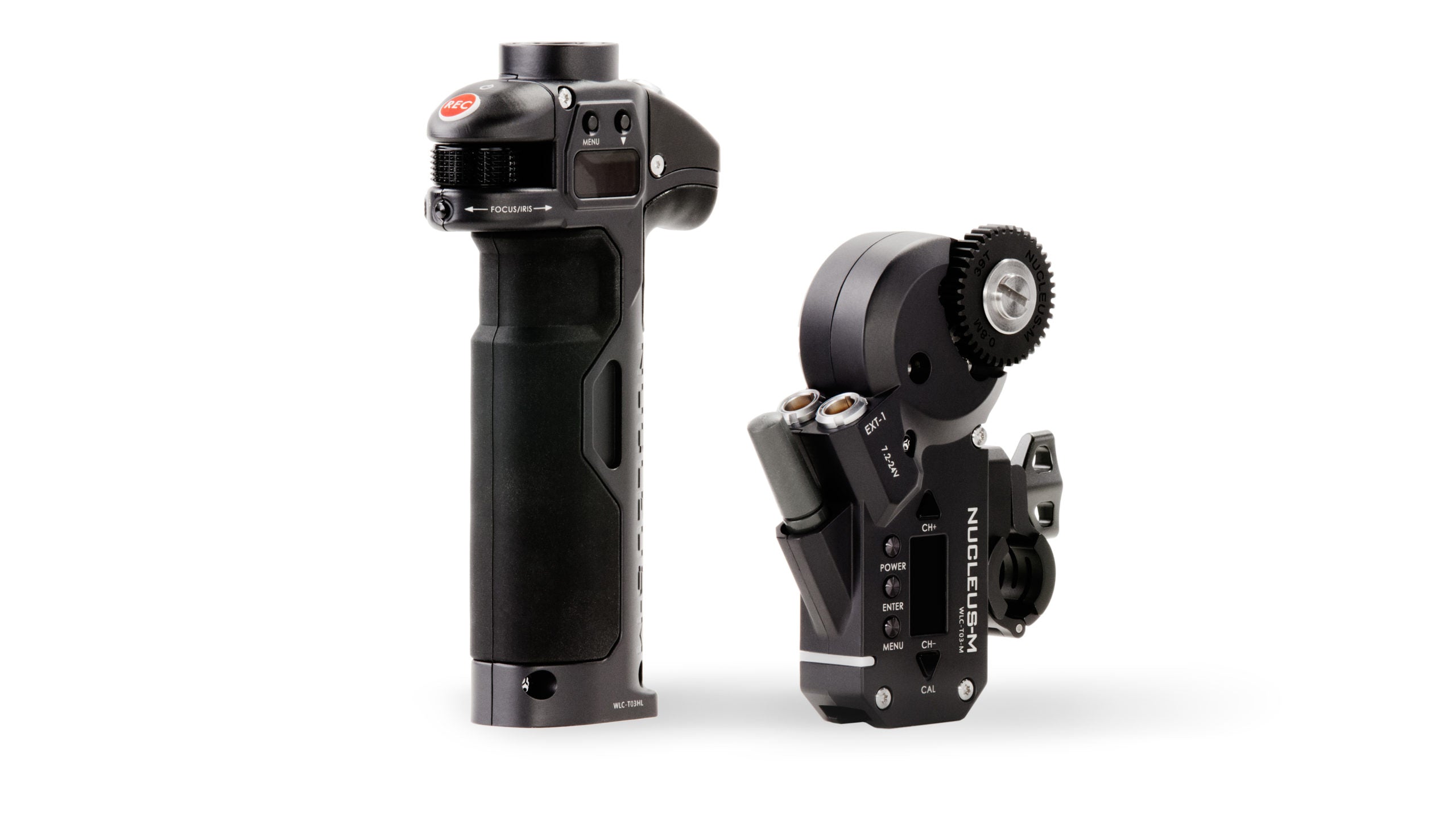

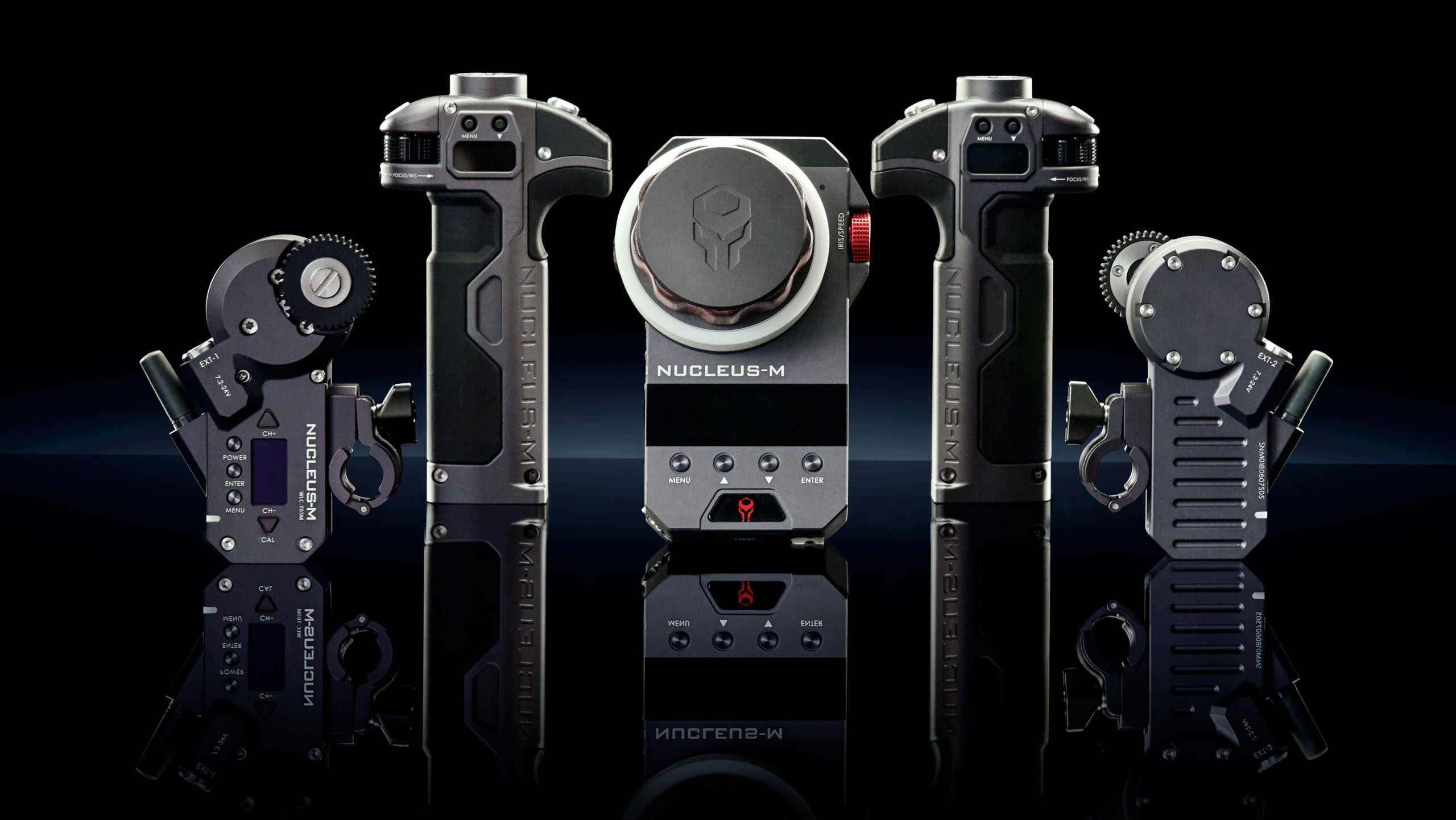

The Nucleus-M is a revolutionary and highly customizable 3-channel wireless lens control system. It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button. The wireless range of both the hand unit and hand grips is 1,000 feet. The hand grips can be attached to the included rosette mounts for handheld operation and can also be attached to top bar-based gimbals with the included Nucleus-M Hand Grip to Gimbal Adapters or to ring-based gimbals with the optional Nucleus-M Hand Grip Universal Gimbal Ring Adapters . Each motor has its own built-in motor drive that communicates directly with the hand unit and hand grips. This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time. Simply set the motors and hand unit/hand grips to the same channel and you will have full control. The motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity. The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup. Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses. The torque of the Nucleus-M Motor at 14.8V is 2.5N·m To power the motors, only one power port on your camera rig needs to be used. Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables. The motors can be powered through a power source that has a voltage output ranging from 7.2V-24V. The hand unit and hand grips are each powered with two 18650 rechargeable batteries (batteries NOT included) . When fully charged, the batteries in the hand grips last up to 2 days, while in the hand unit they last up to 10 hours. Remote start/stop is possible by plugging a compatible Nucleus-M R/S cable into the open 7-pin port of a motor. This then gives you R/S capabilities through the hand unit and/or the handles. ** PLEASE NOTE: The R/S cables we offer for our wooden handles ARE NOT compatible with the Nucleus-M since the engineering and pin configurations are completely different. Using the wooden handle R/S cables are not safe to use with the Nucleus-M. Only use cables that have been developed by us exclusively for the Nucleus-M system.

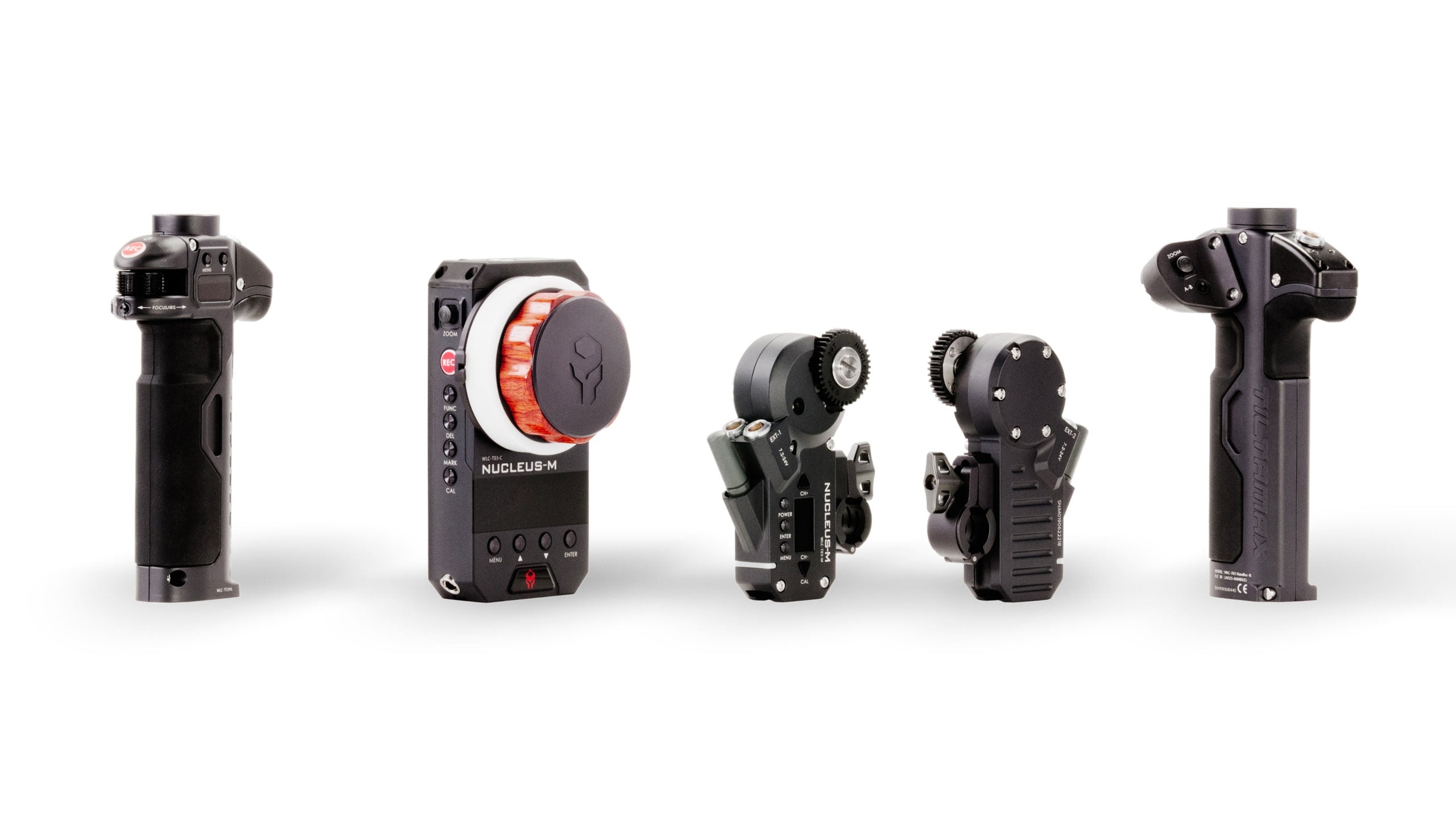

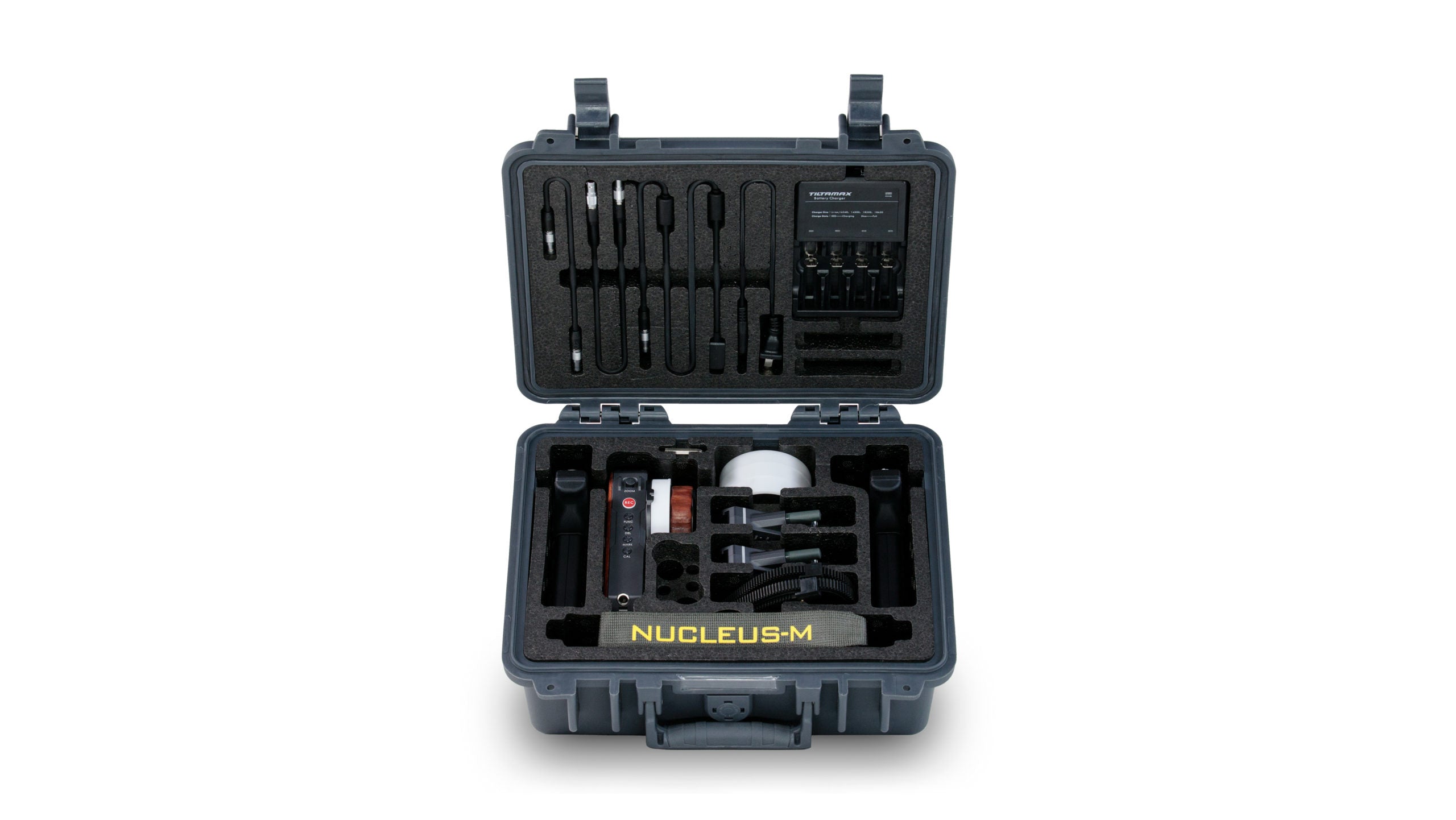

1. Full Kit w/ Hard Case
2. (1) Wireless FIZ hand unit

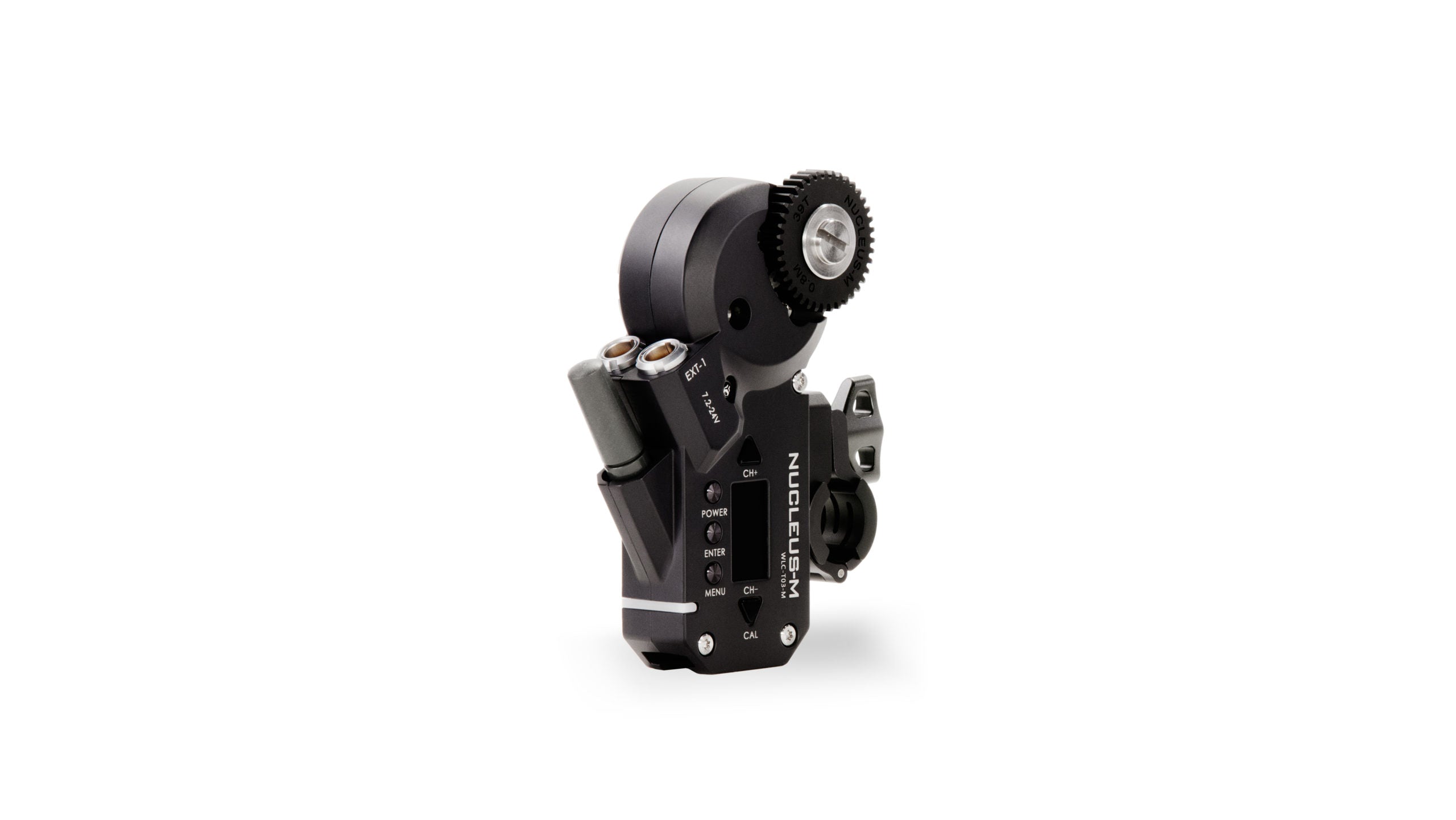

3. (2) Brushless wireless motors with 19mm rod support and 15mm rod bushings
4. (1) Right wireless handle
5. (1) Finger wheel
6. (1) Zoom toggle
7. (1) Left wireless handle
8. (1) Finger wheel
9. (4) Follow focus marking disks
10. (1) 74cm 7-pin to P-tap motor power cable
11. (1) 55cm 7-pin to 7-pin motor connection cable
12. (1) 18cm 7-pin to 7-pin motor connection cable
13. (2) Photographic lens follow focus adapters
14. (1) 18650 quad battery charger (batteries NOT included)
15. (2) Handle to Arri Standard Rosette adapters
16. (1) Wireless FIZ hand unit strap
17. (1) Hard shell waterproof safety case

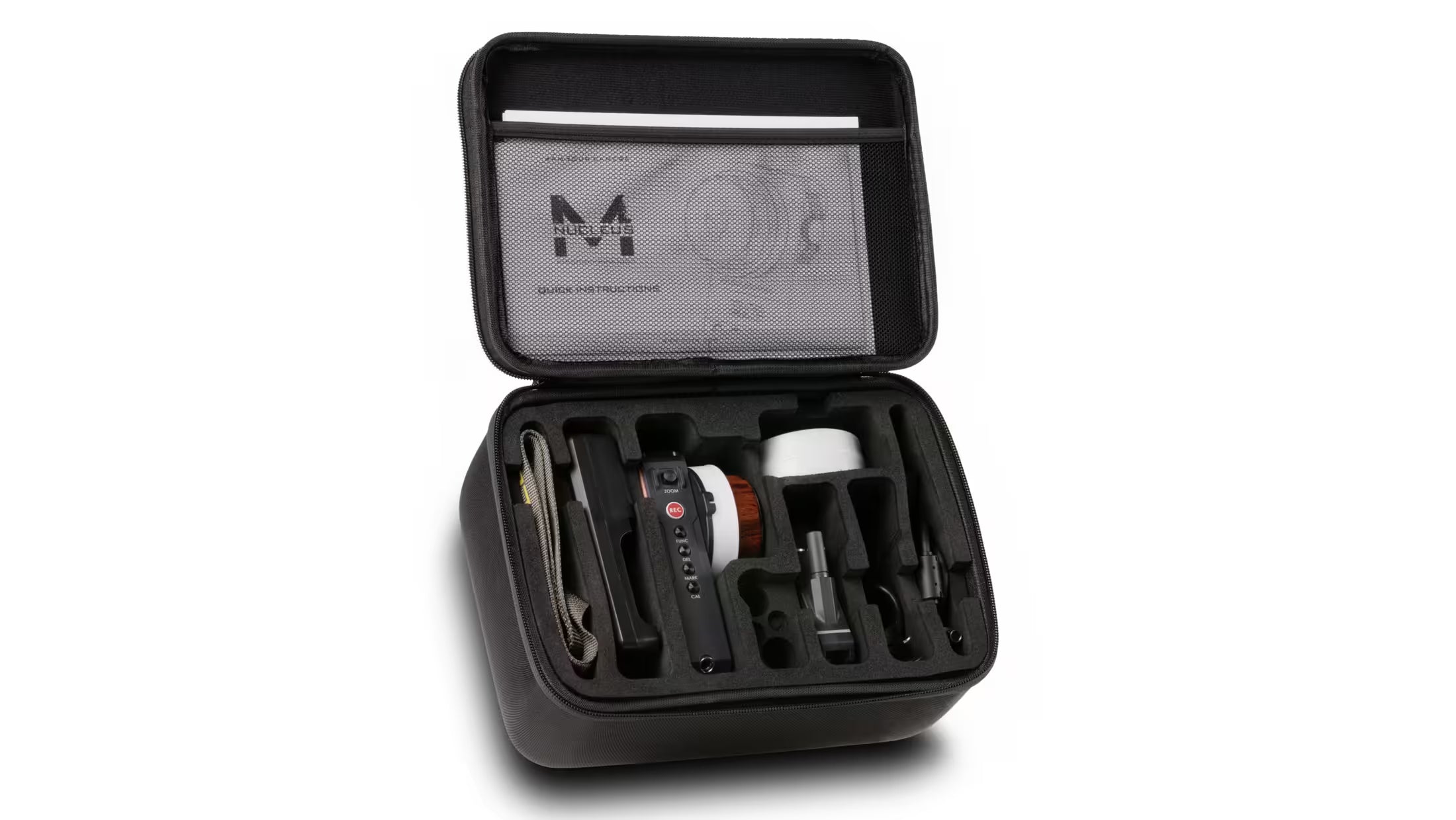

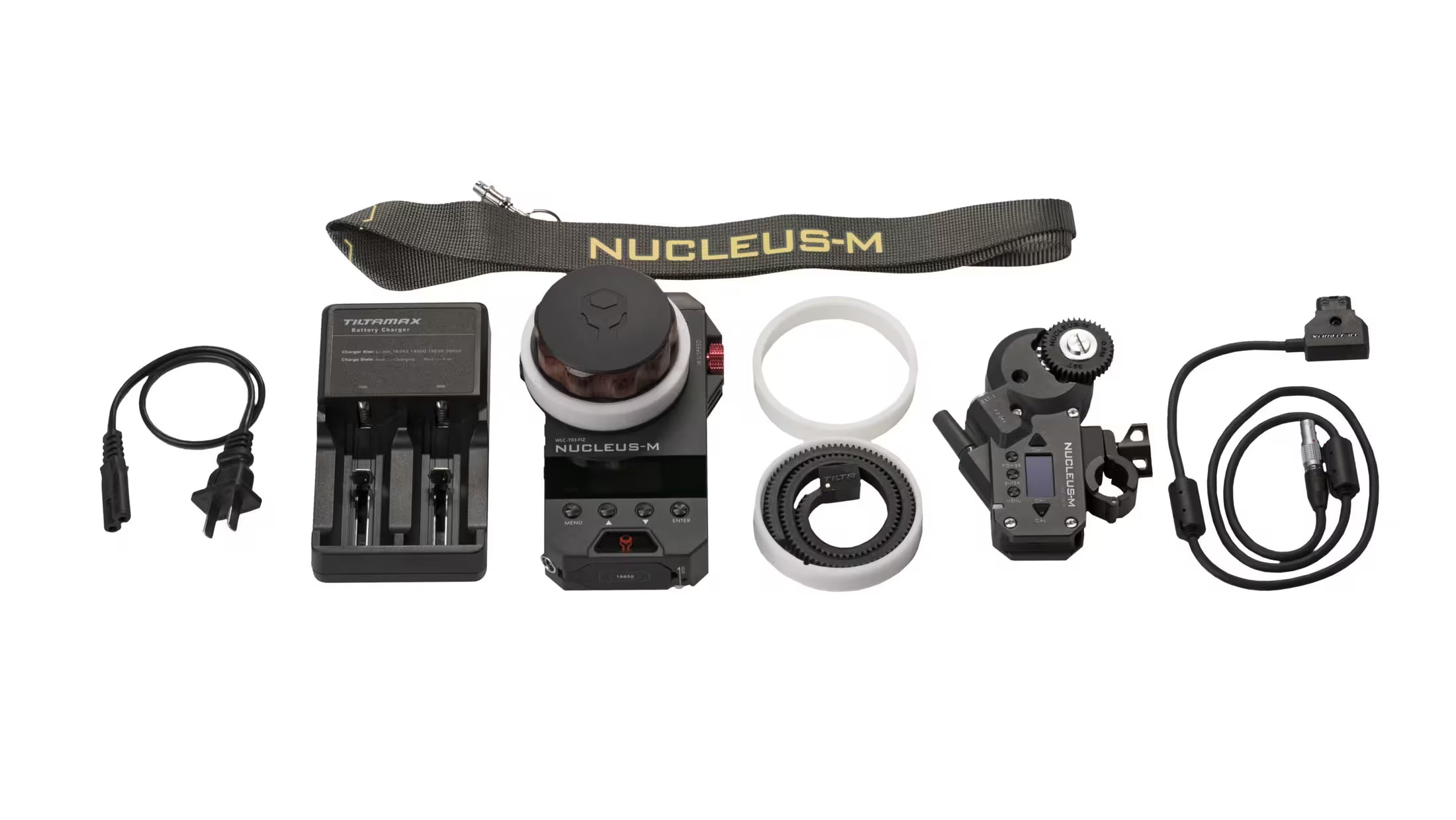

18. Partial Kit I
19. (1) Wireless FIZ hand unit
20. (1) Brushless wireless motor with 19mm rod support and 15mm rod bushings
21. (1) Photographic Lens Follow Focus Adapter
22. (1) 74cm 7-pin to P-tap motor power cable
23. (1) Follow focus marking disks
24. (1) Wireless FIZ hand unit strap
25. (1) 18650 quad battery charger (batteries NOT included)

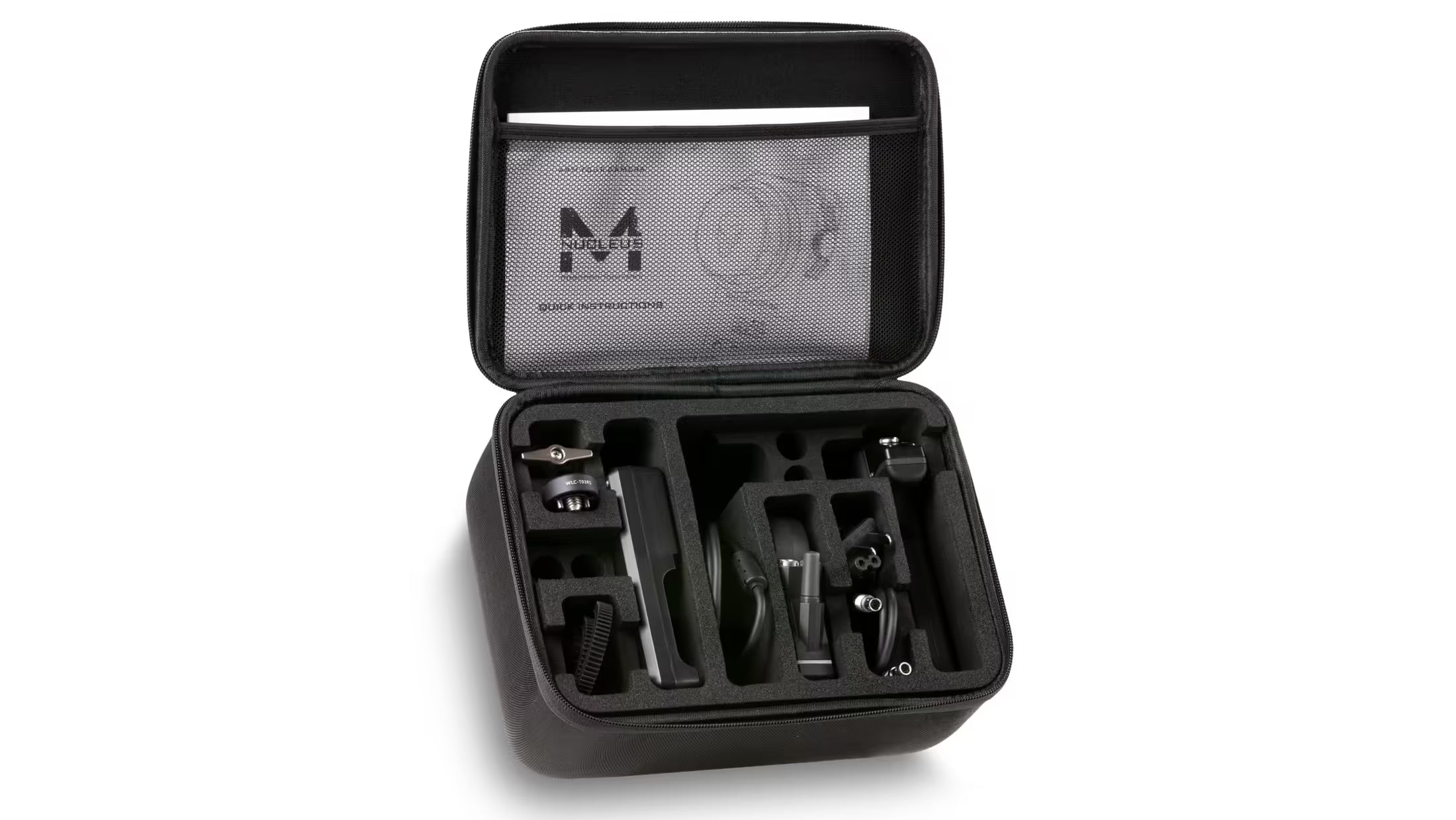

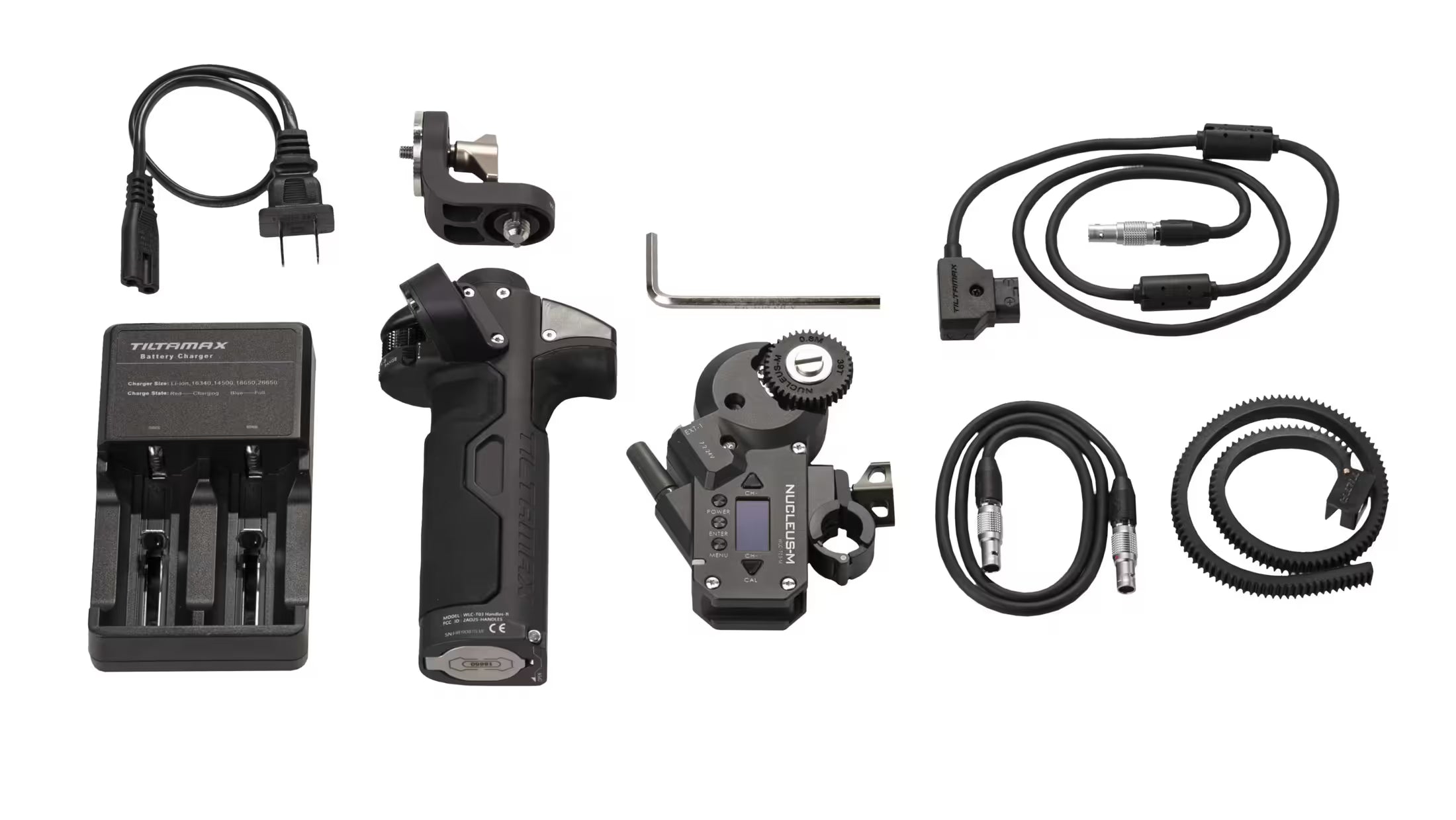

26. Partial Kit II
27. (1) Right wireless handle
28. (1) Finger wheel
29. (1) Zoom toggle
30. (1) Brushless wireless motor with 19mm rod support and 15mm rod bushings
31. (1) 55cm 7-pin to 7-pin motor connection cable
32. (1) Photographic Lens Follow Focus Adapter
33. (1) 74cm 7-pin to P-tap motor power cable
34. (1) Hand Grip to Arri Standard Rosette Adapters
35. (1) Wireless FIZ hand unit strap
36. (1) 18650 quad battery charger (batteries NOT included)

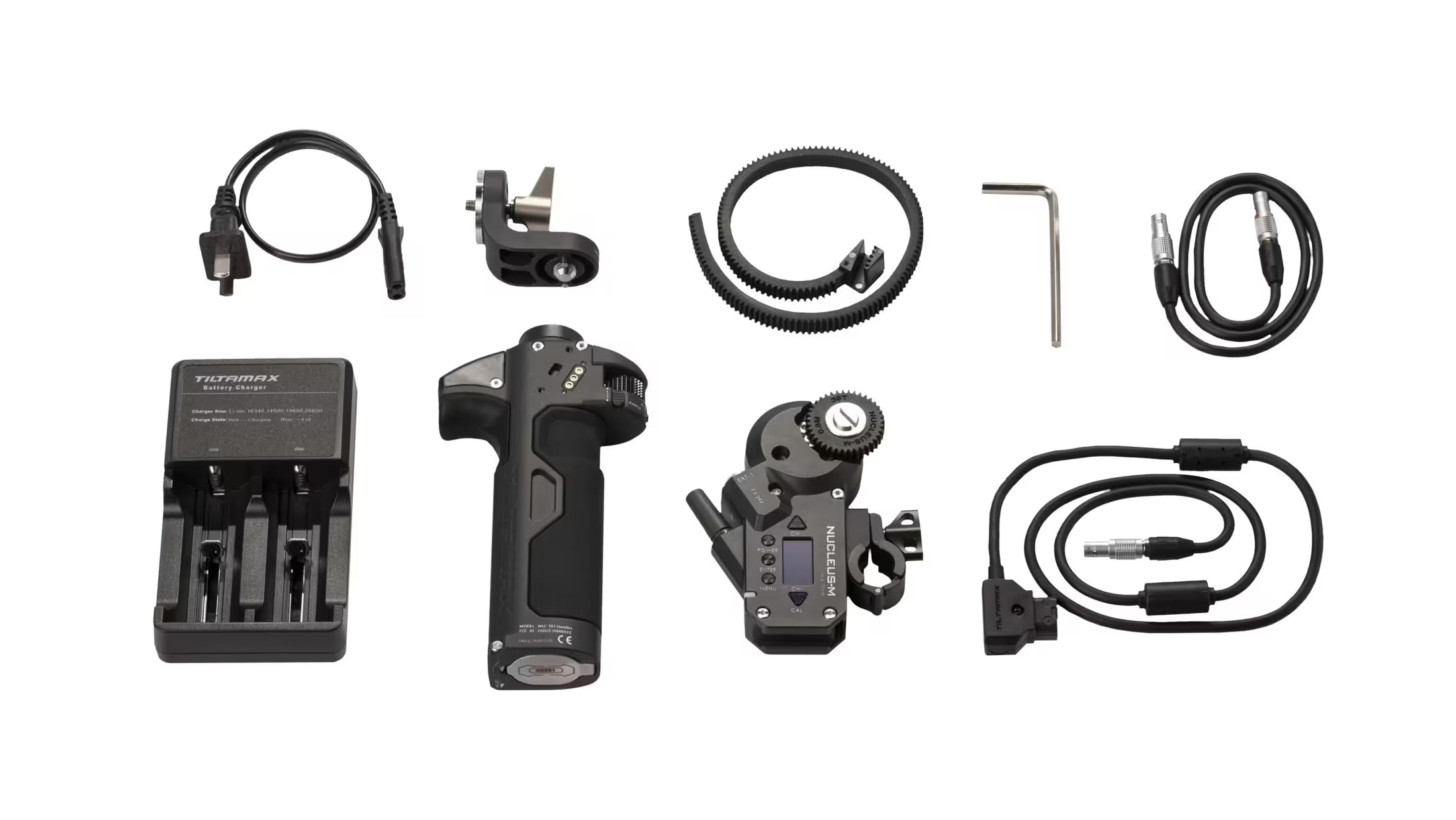

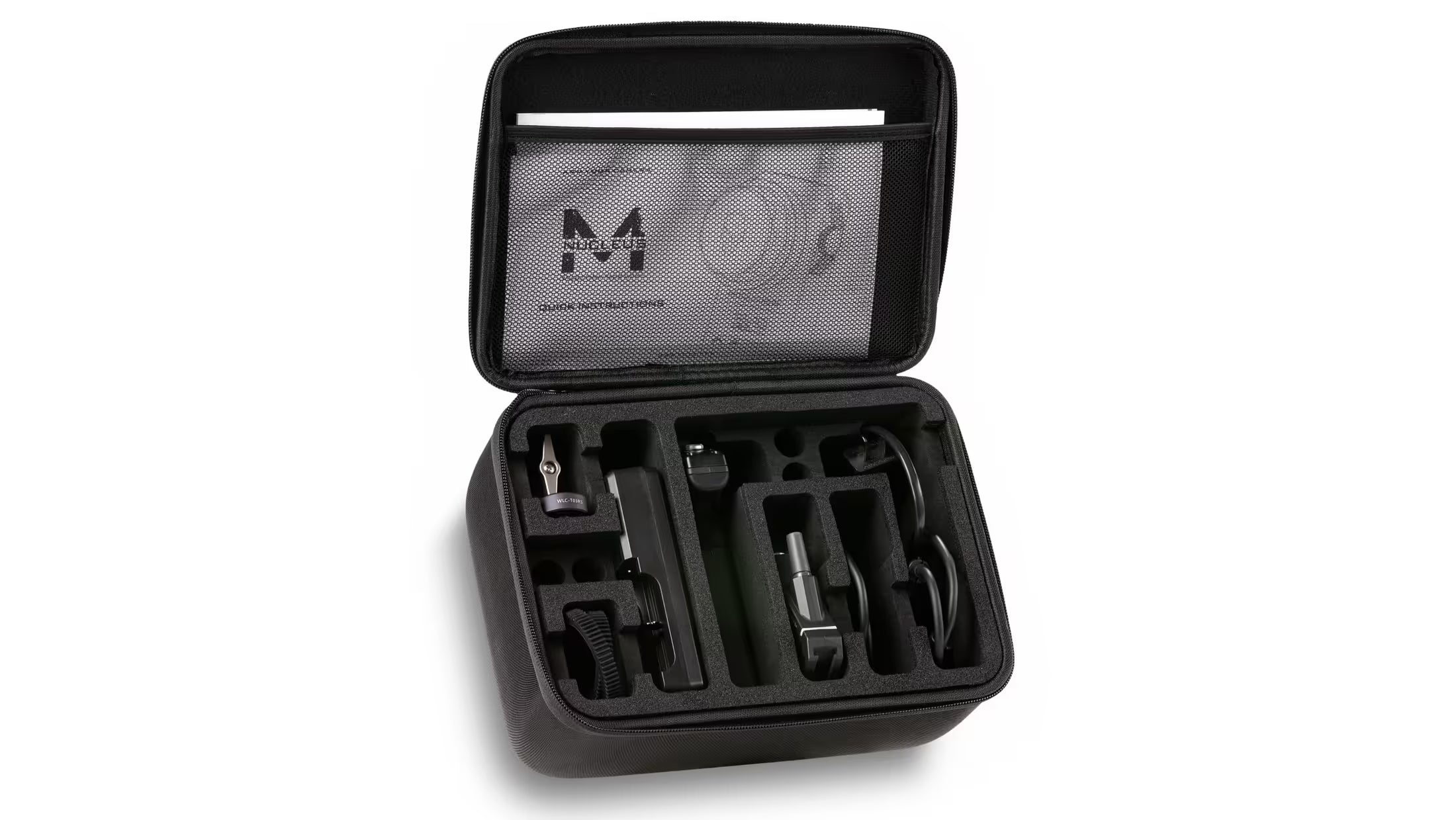

37. Partial Kit III
38. (1) Left wireless handle
39. (1) Finger wheel
40. (1) Brushless wireless motor with 19mm rod support and 15mm rod bushings
41. (1) 55cm 7-pin to 7-pin motor connection cable
42. (1) Photographic Lens Follow Focus Adapter
43. (1) 74cm 7-pin to P-tap motor power cable
44. (1) Hand Grip to Arri Standard Rosette Adapters
45. (1) Wireless FIZ hand unit strap
46. (1) 18650 quad battery charger (batteries NOT included)

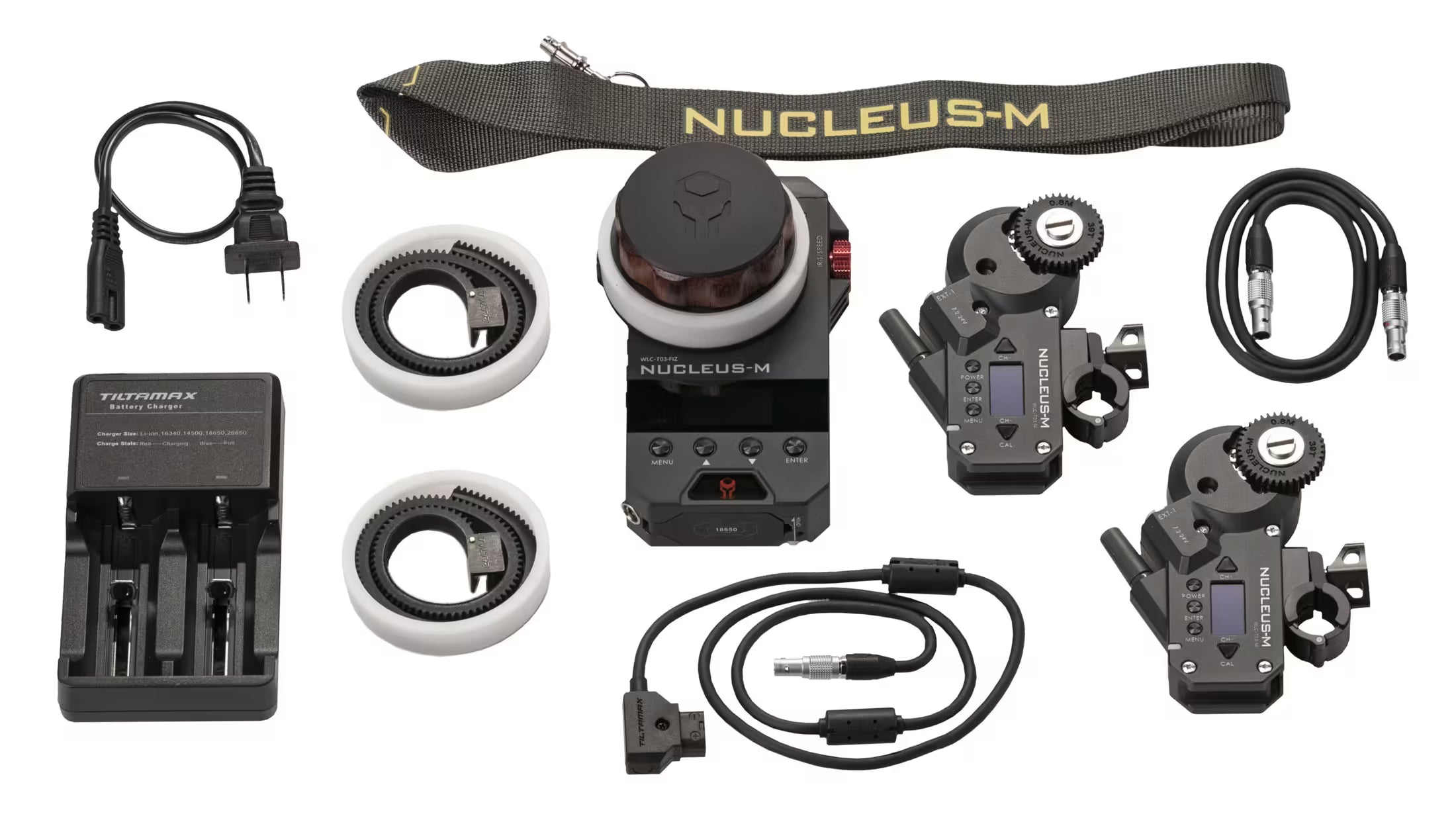

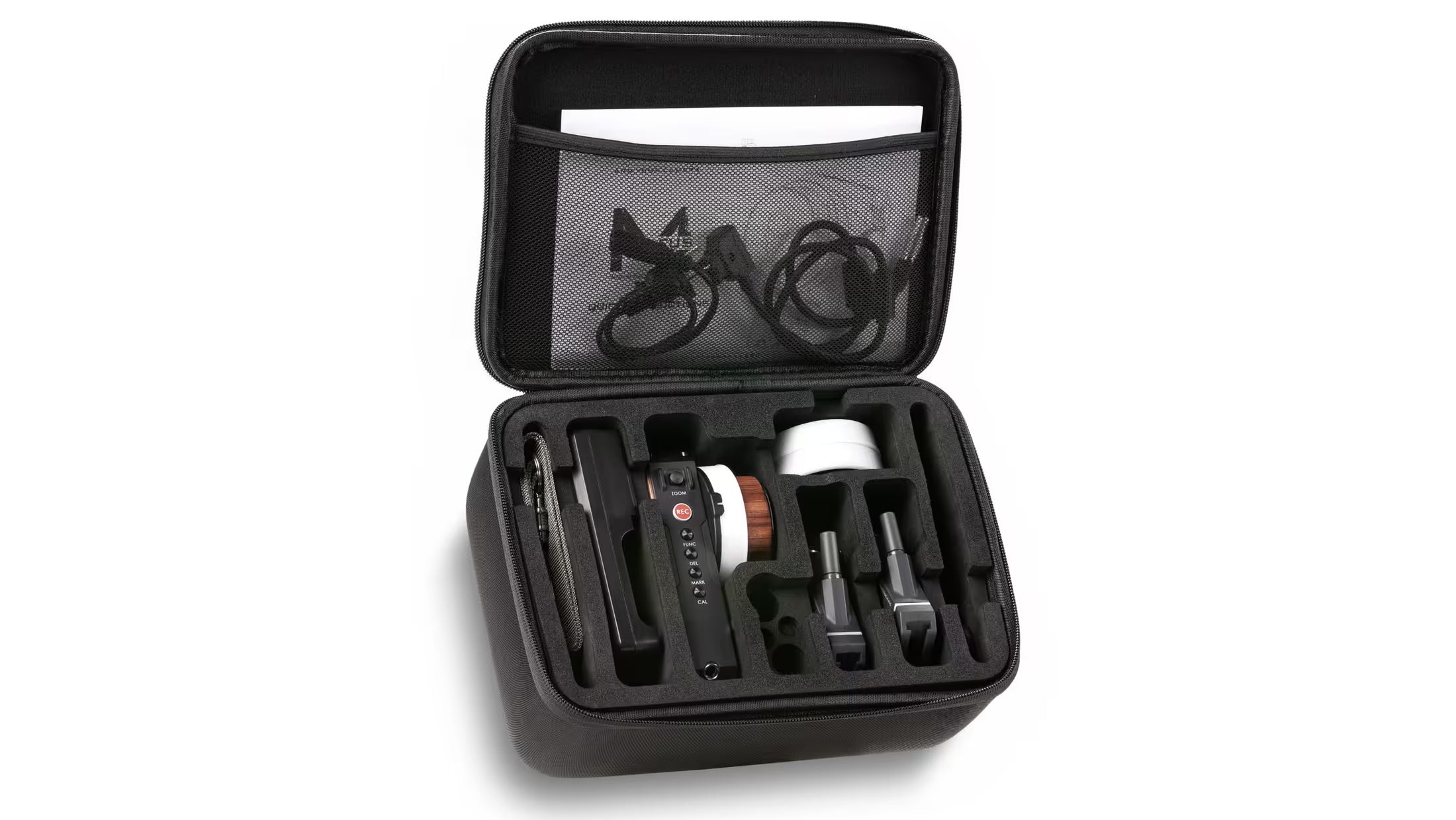

47. Partial Kit IV
48. (1) Wireless FIZ hand unit
49. (2) Brushless wireless motor with 19mm rod support and 15mm rod bushings
50. (1) 55cm 7-pin to 7-pin motor connection cable
51. (1) Photographic Lens Follow Focus Adapter
52. (1) 74cm 7-pin to P-tap motor power cable
53. (1) Follow focus marking disks
54. (1) Wireless FIZ hand unit strap
55. (1) 18650 quad battery charger (batteries NOT included)
56. Partial Kit V
57. (1) Left wireless handle
58. (1) Finger wheel
59. (1) Right wireless handle
60. (1) Finger wheel
61. (1) Zoom toggle
62. (1) Brushless wireless motor with 19mm rod support and 15mm rod bushings
63. (1) 55cm 7-pin to 7-pin motor connection cable
64. (1) Photographic Lens Follow Focus Adapter
65. (1) 74cm 7-pin to P-tap motor power cable
66. (1) Hand Grip to Arri Standard Rosette Adapters
67. (1) Wireless FIZ hand unit strap
68. (1) 18650 quad battery charger (batteries NOT included)
