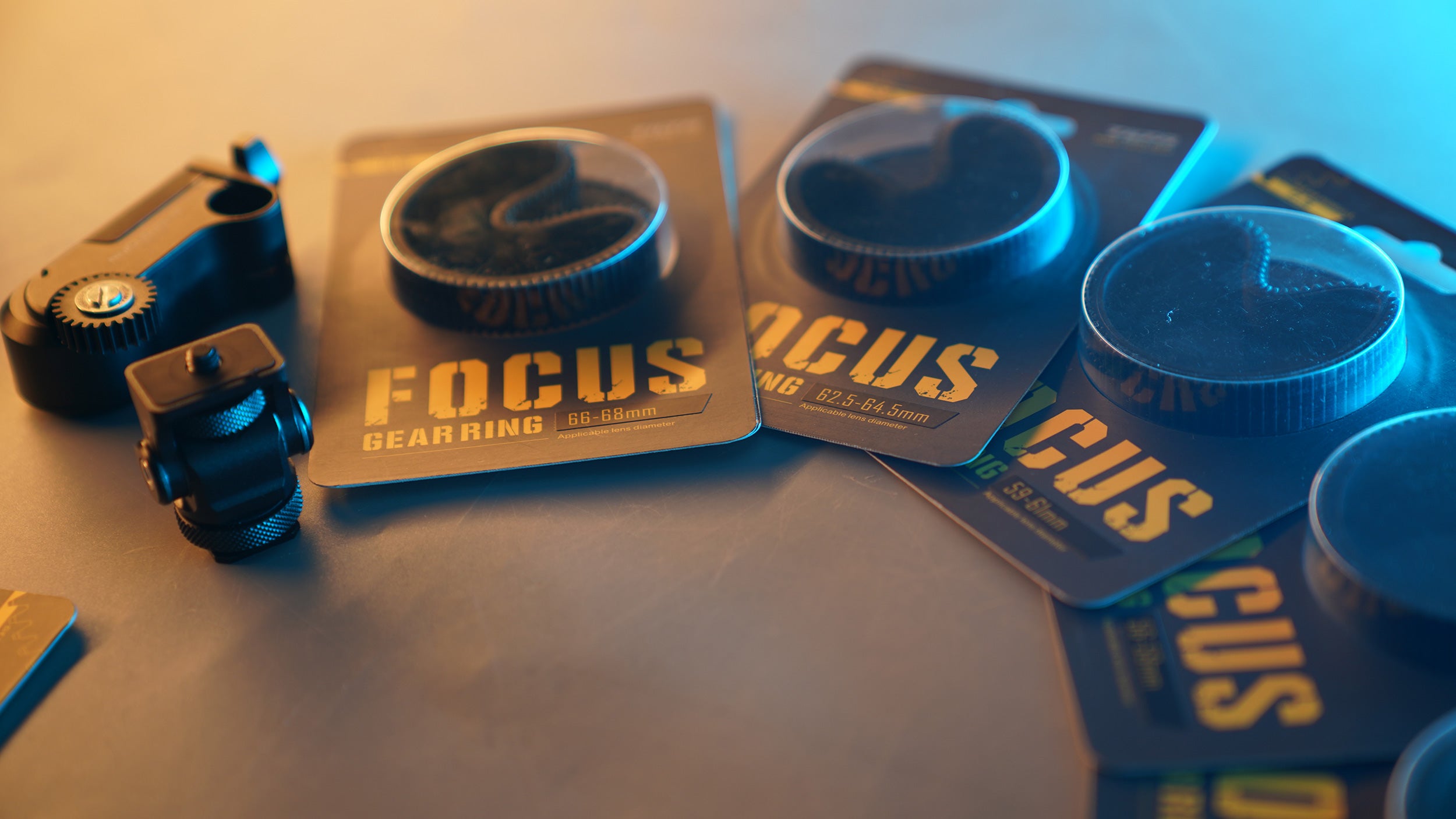

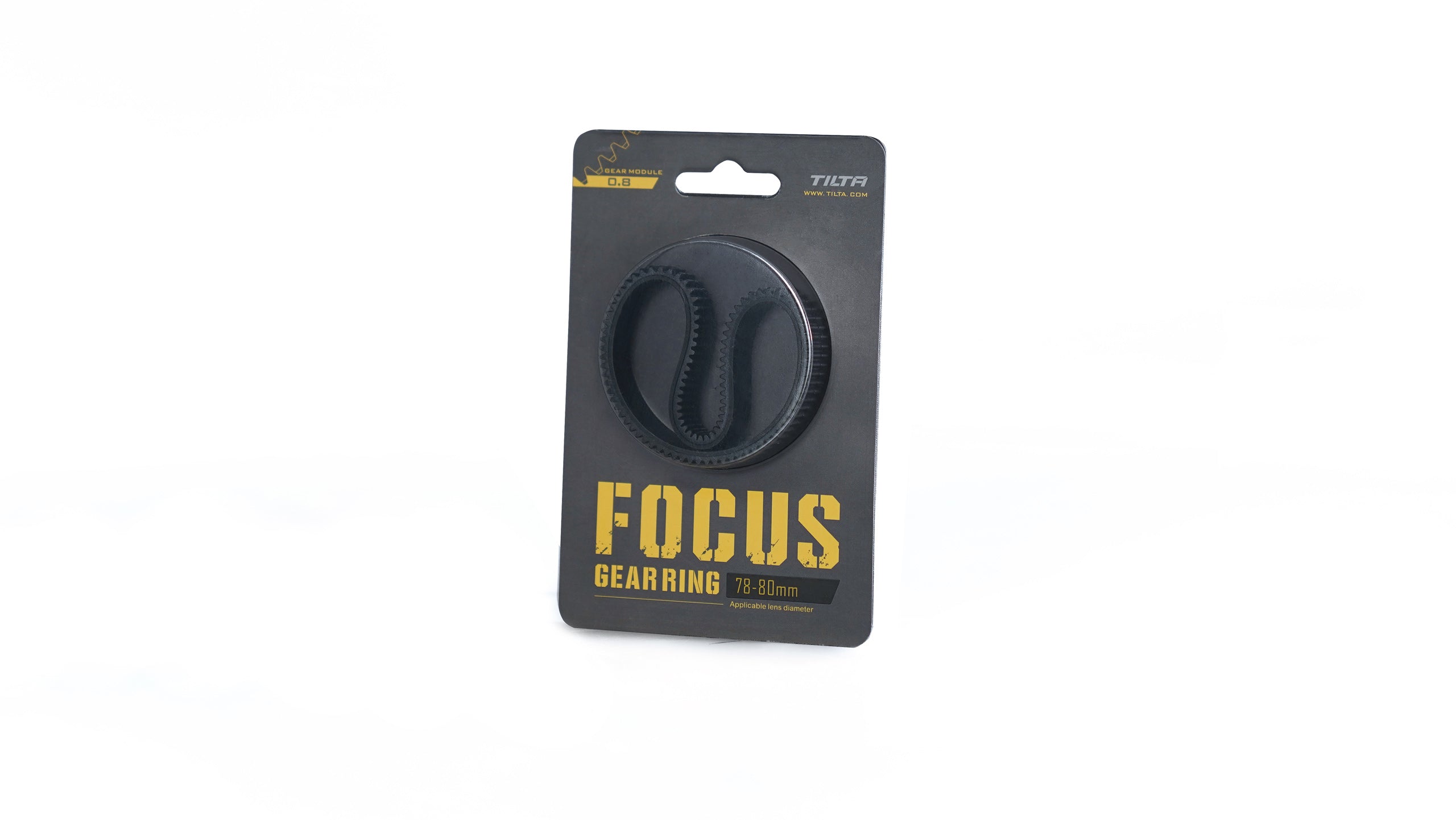

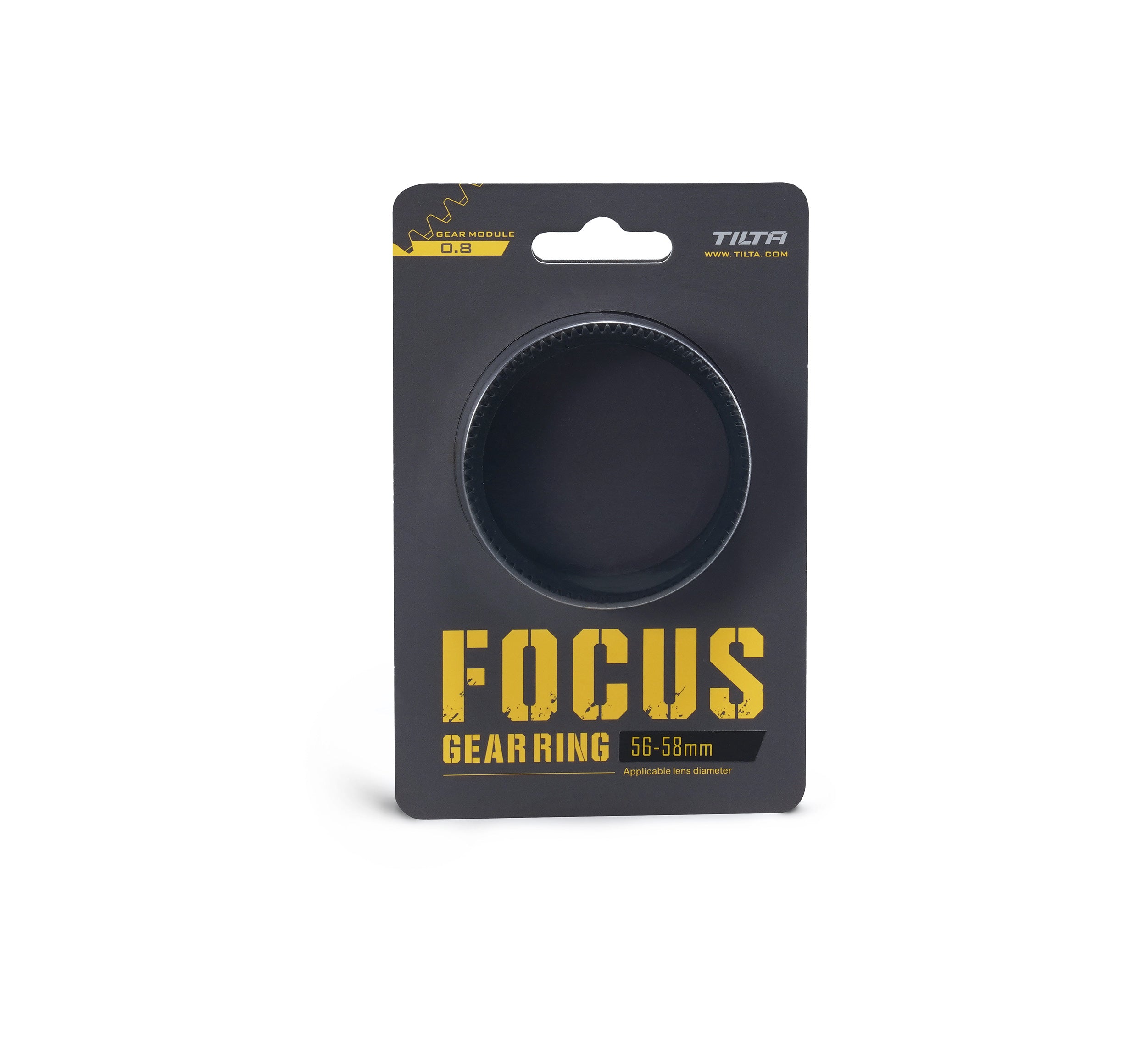

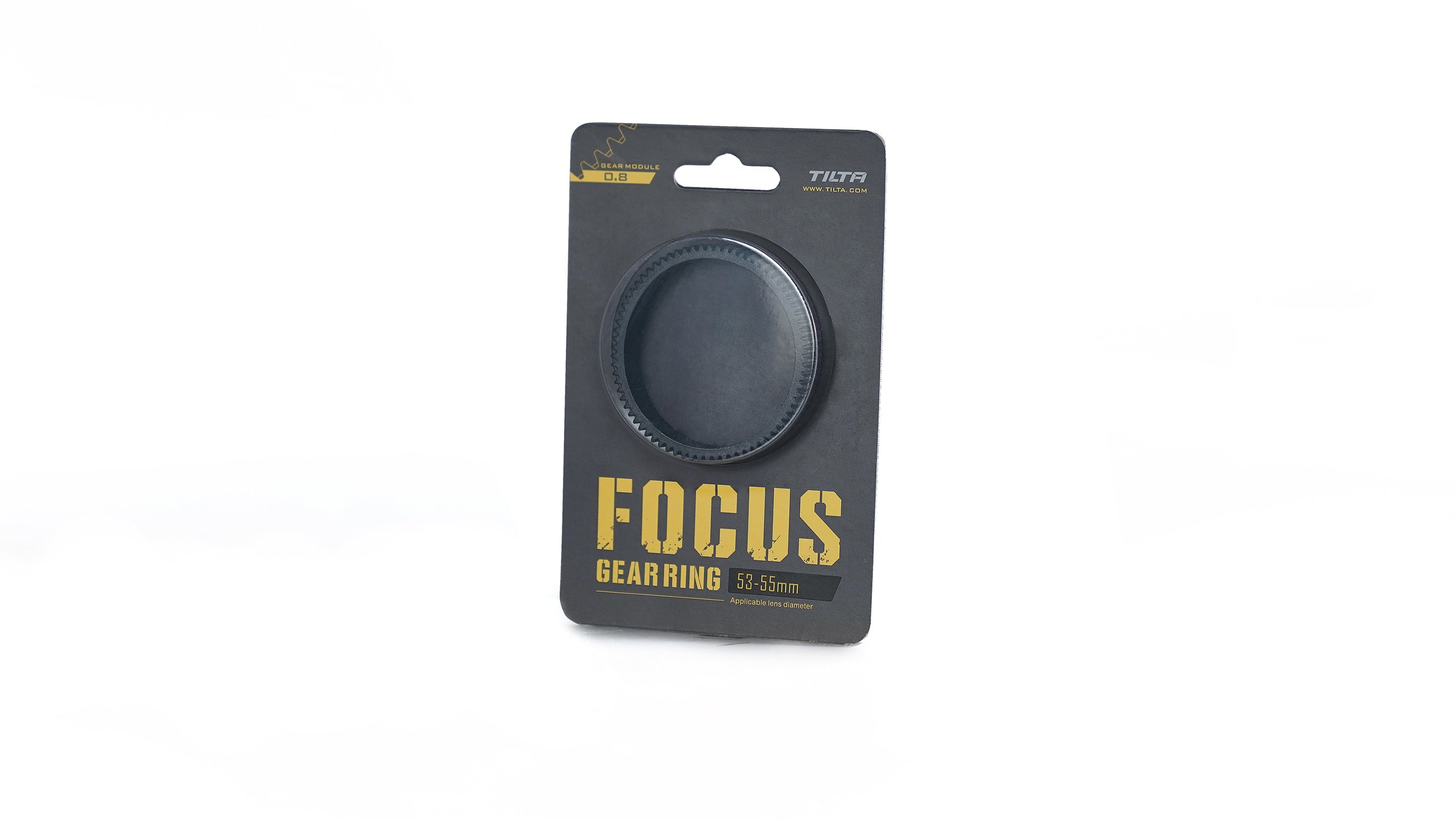

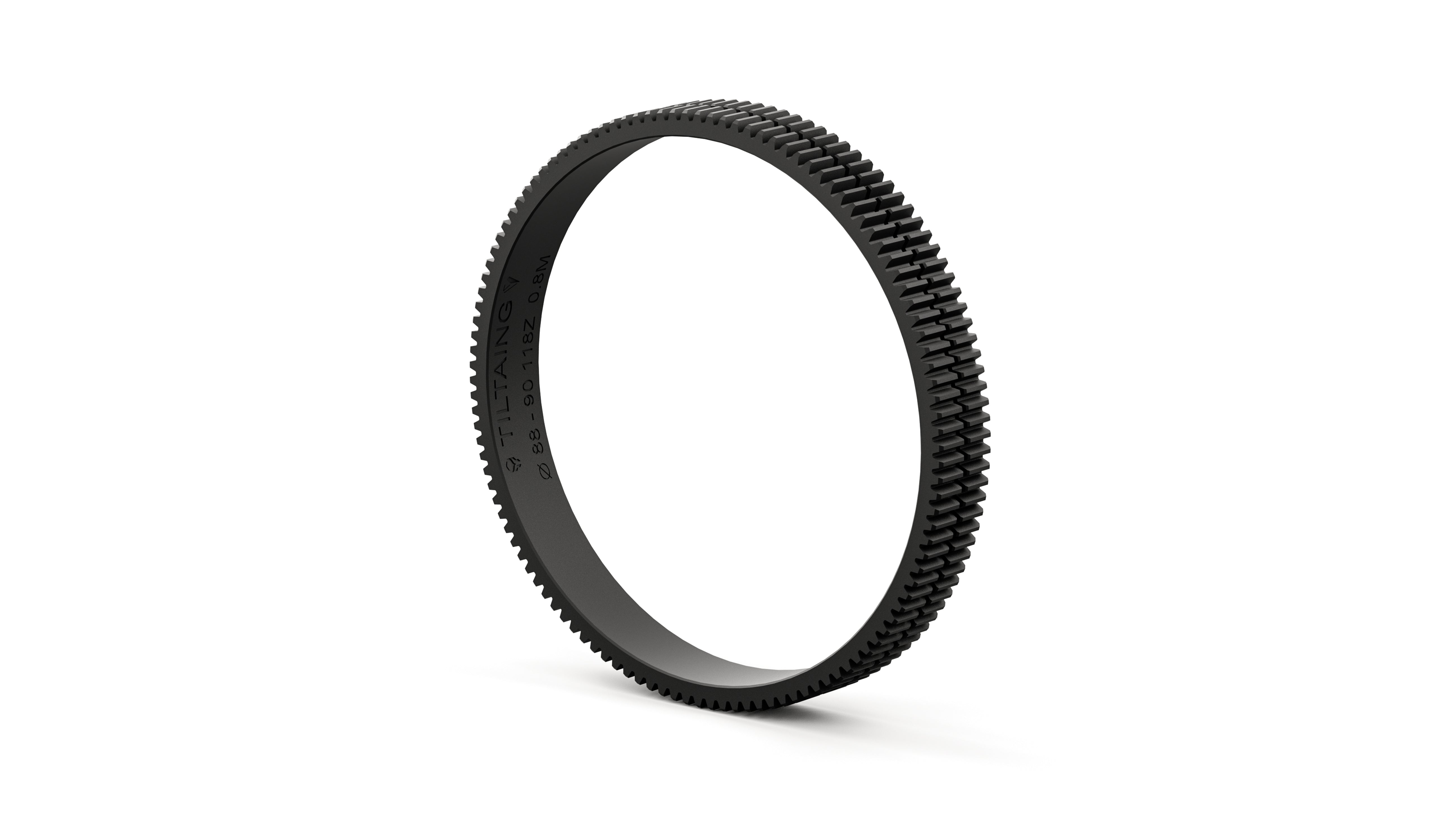

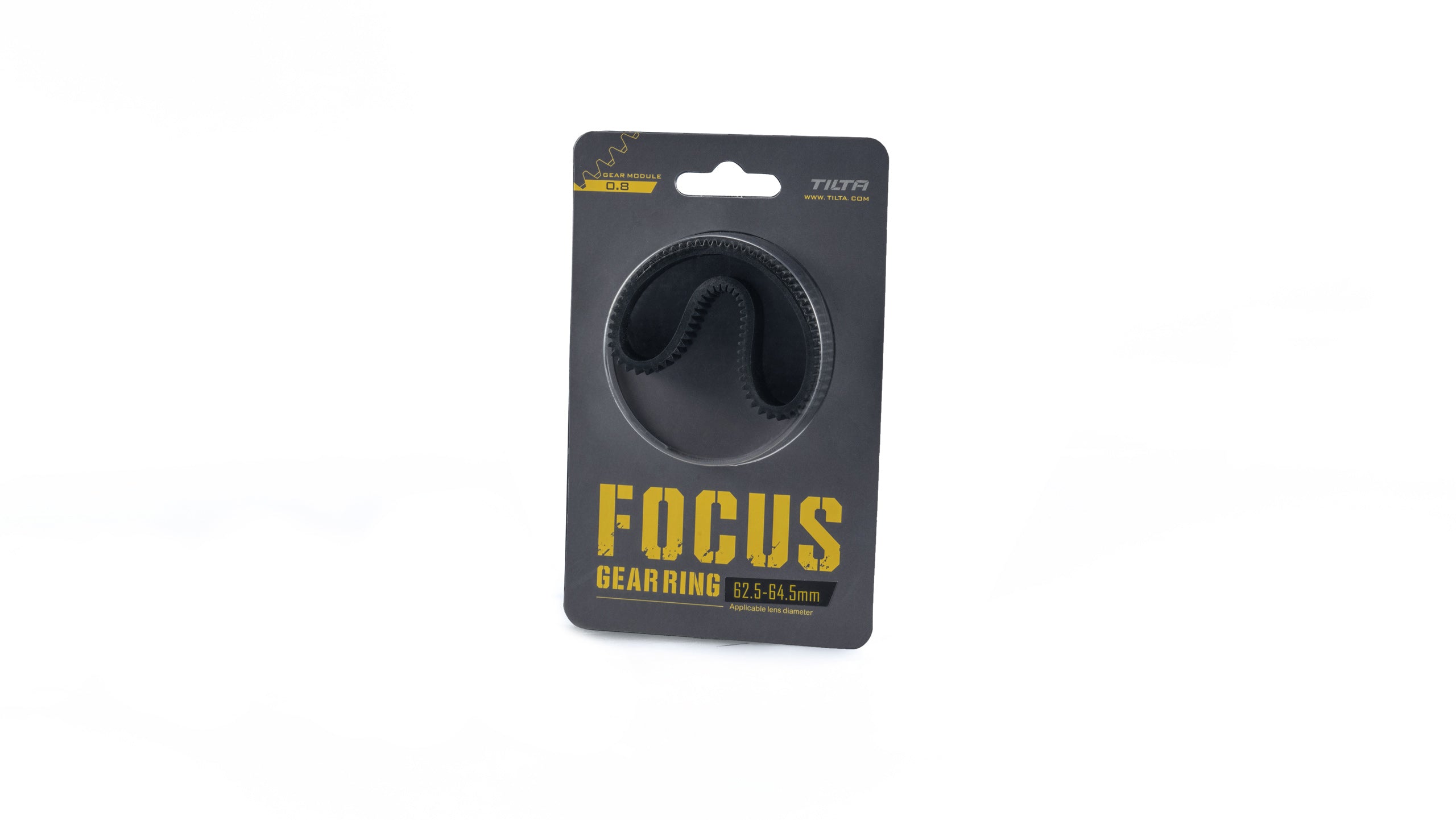

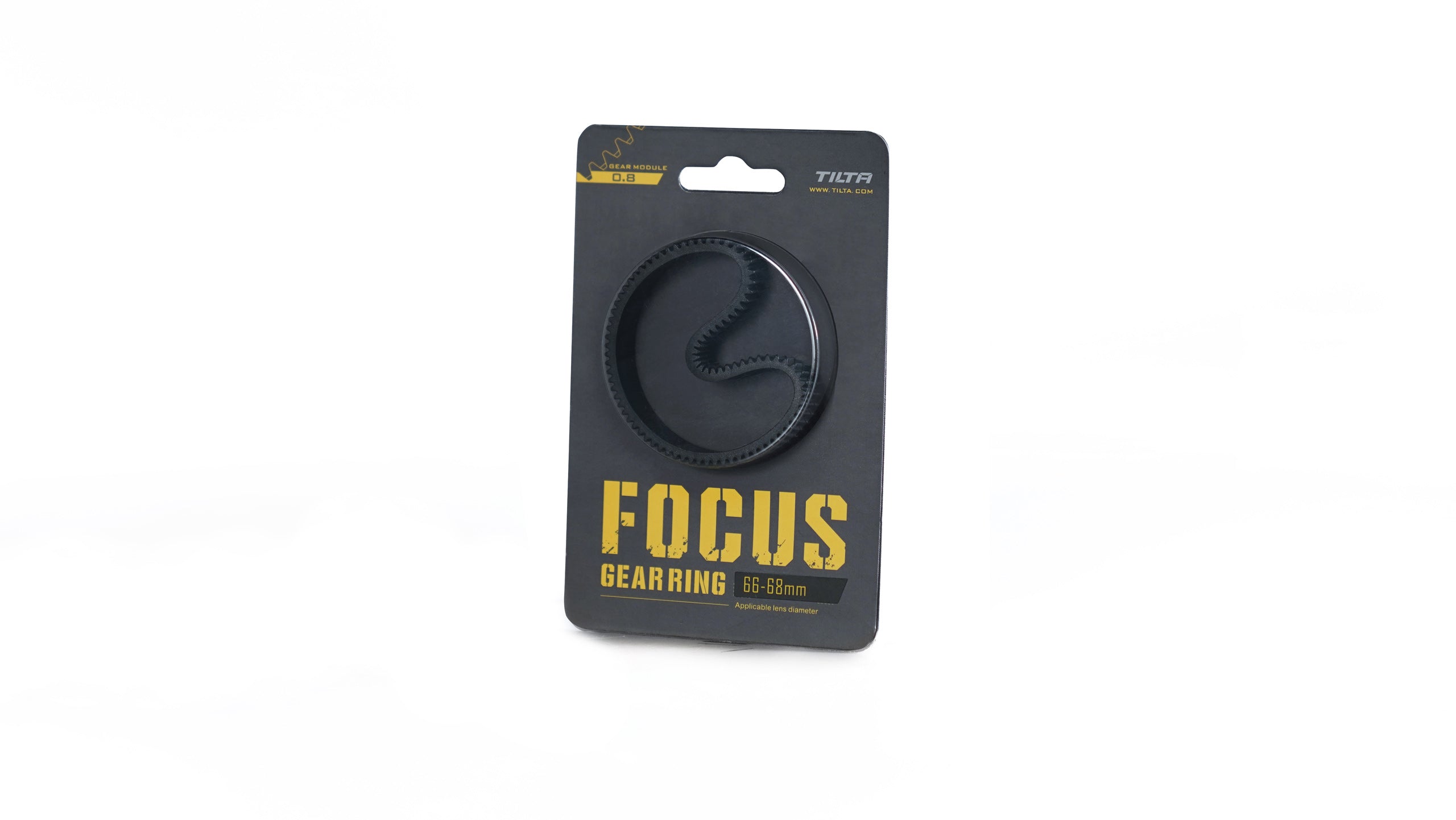

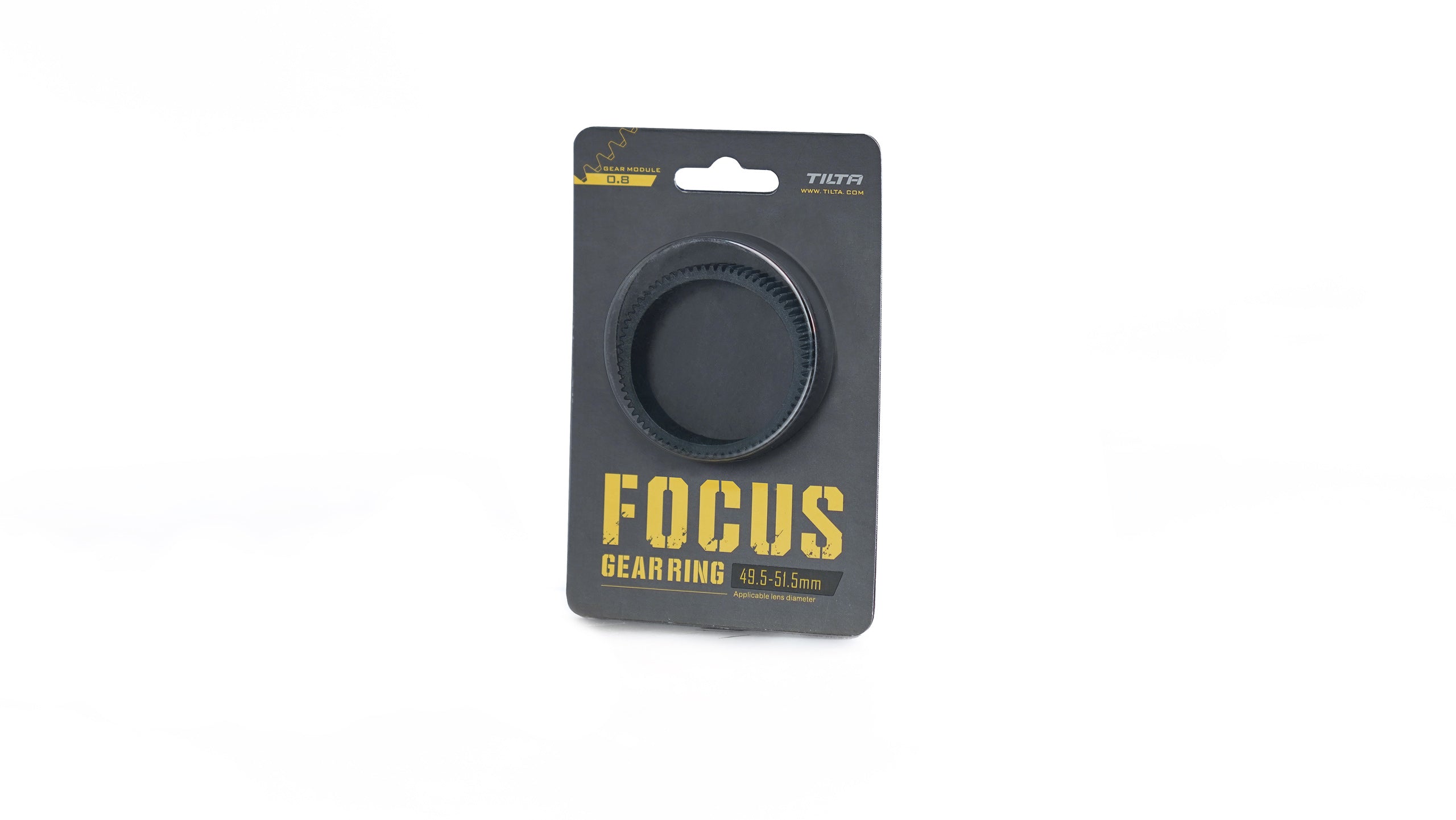

Seamless Focus Gear Ring

Sale price€2,00

Excl. VAT. VAT calculated at checkout

(33)
SKU: TA-FGR-4648

6972835230249


In stock
Size:

Overview

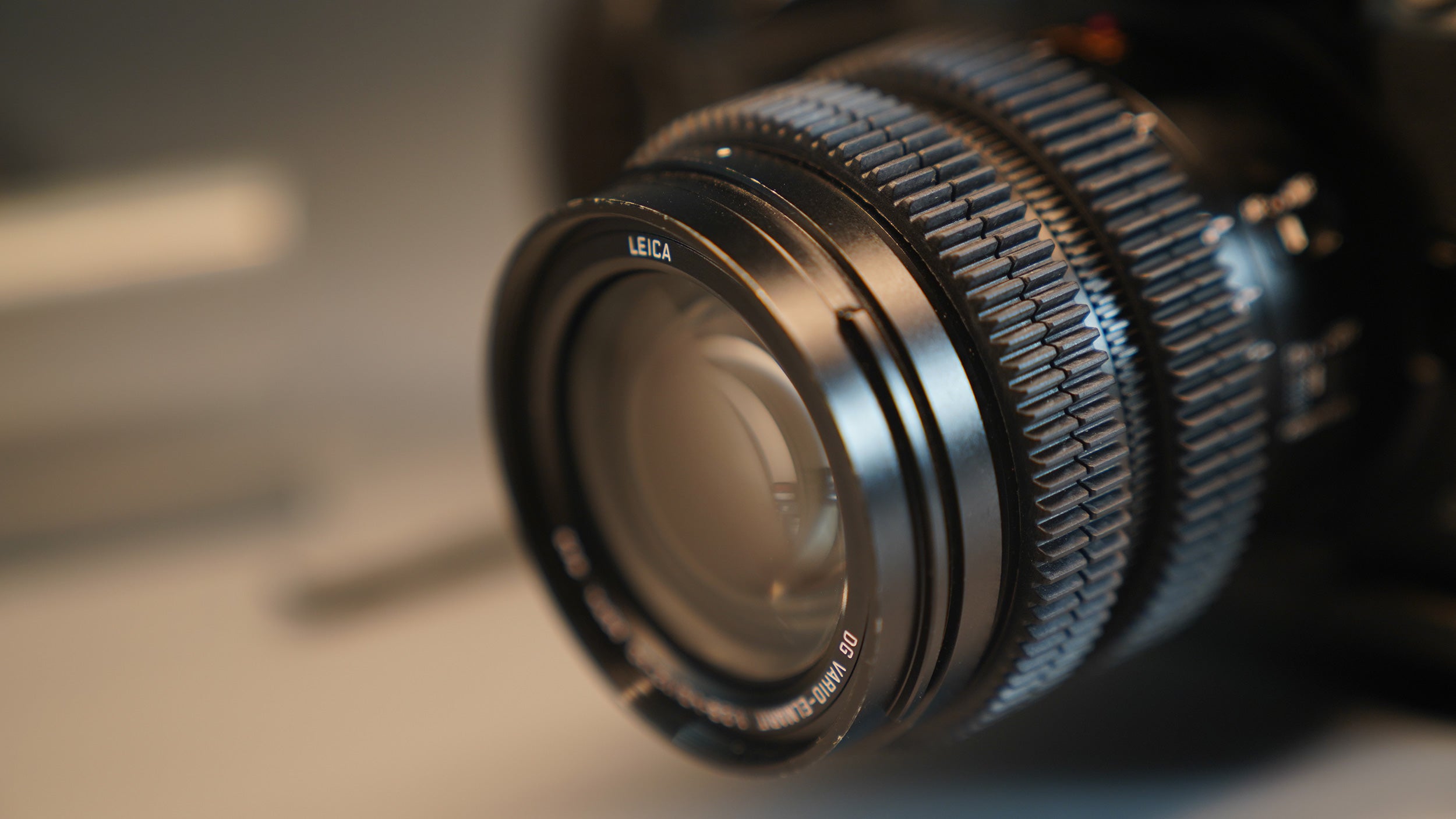

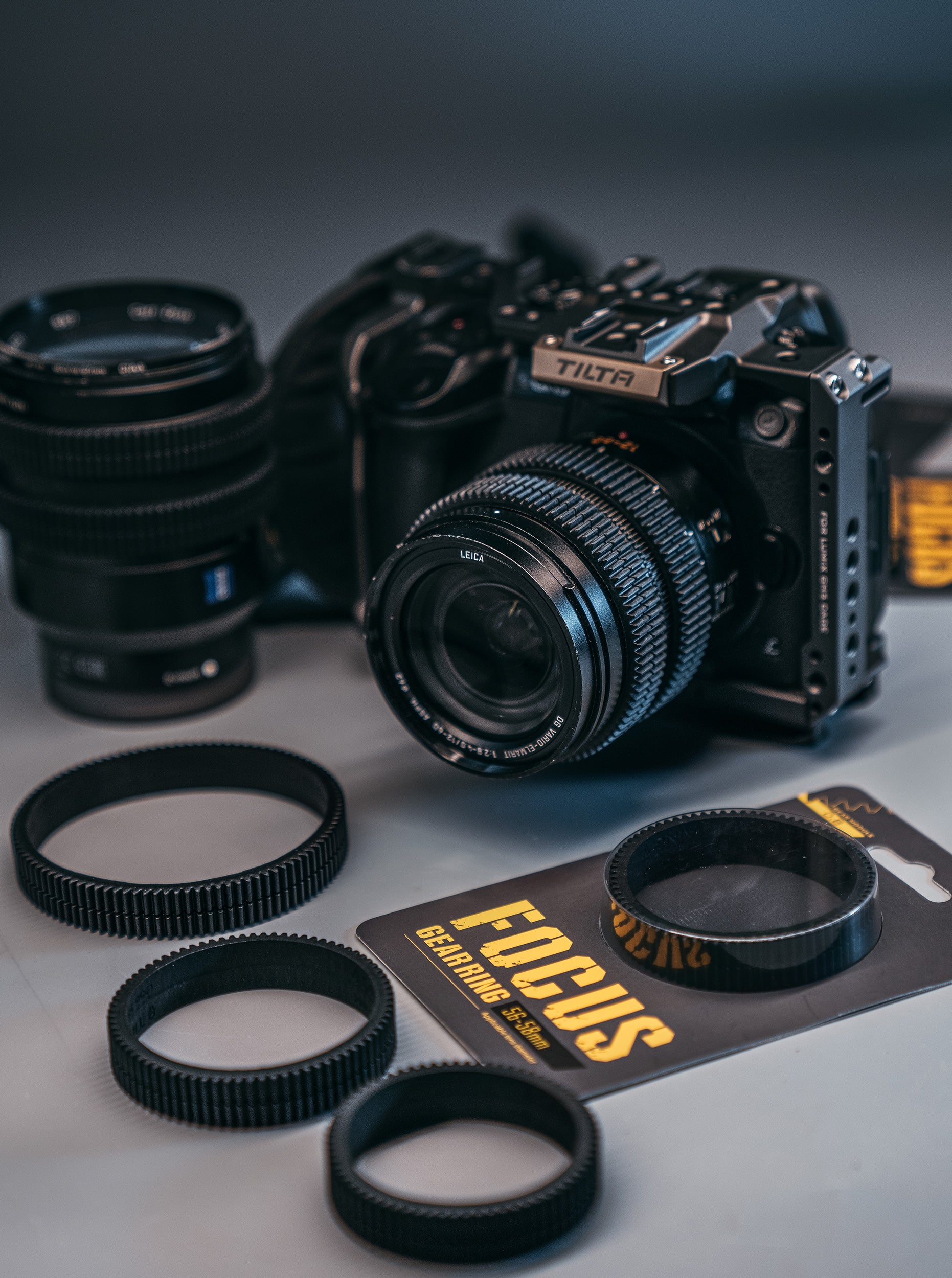

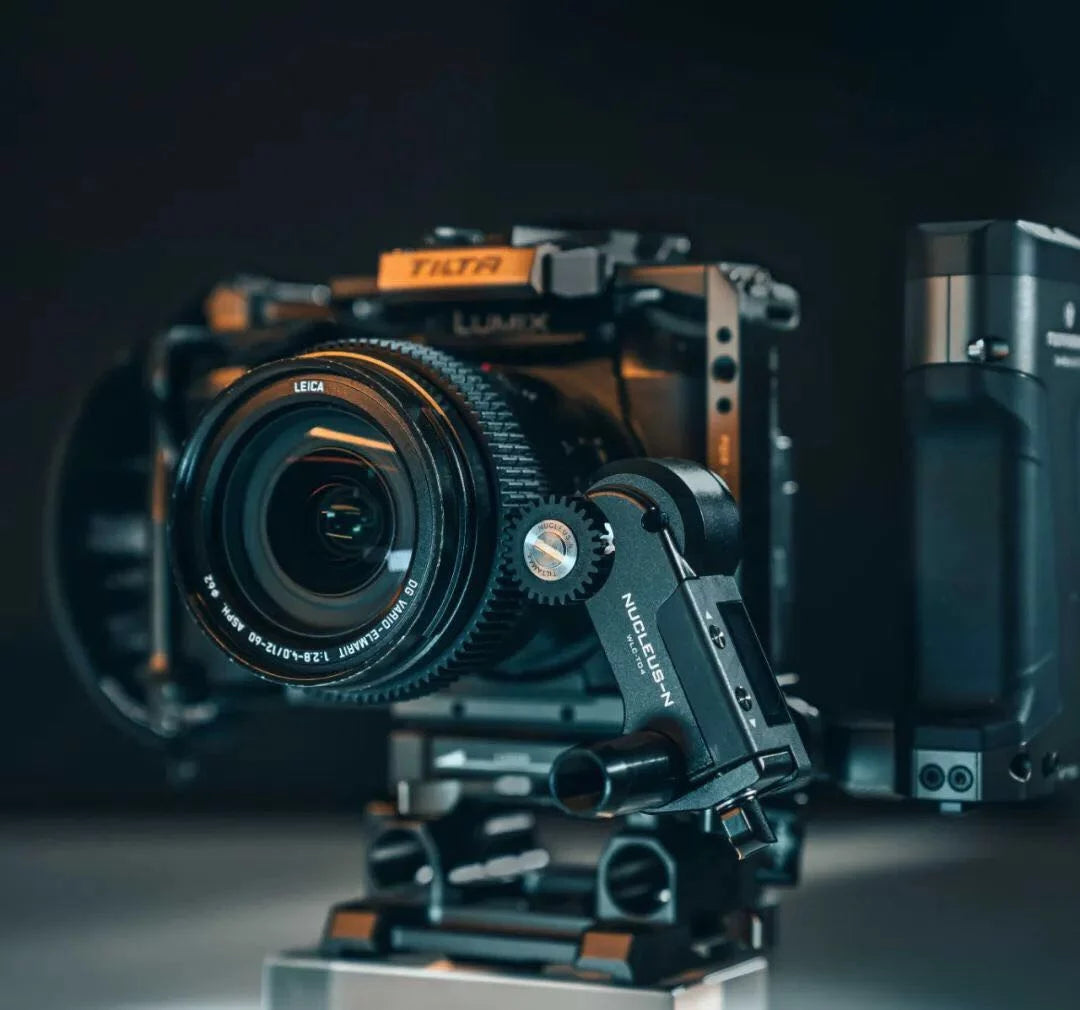

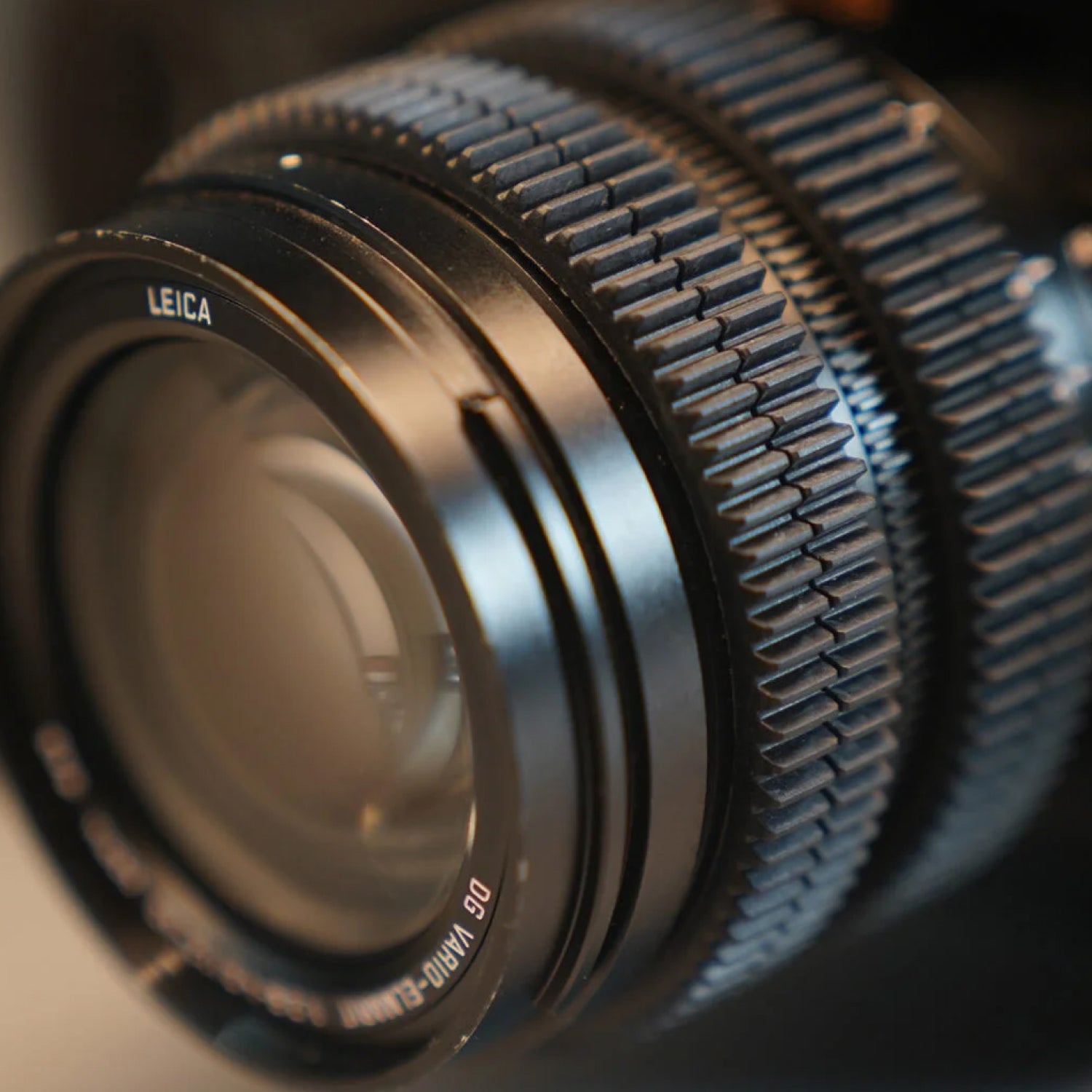

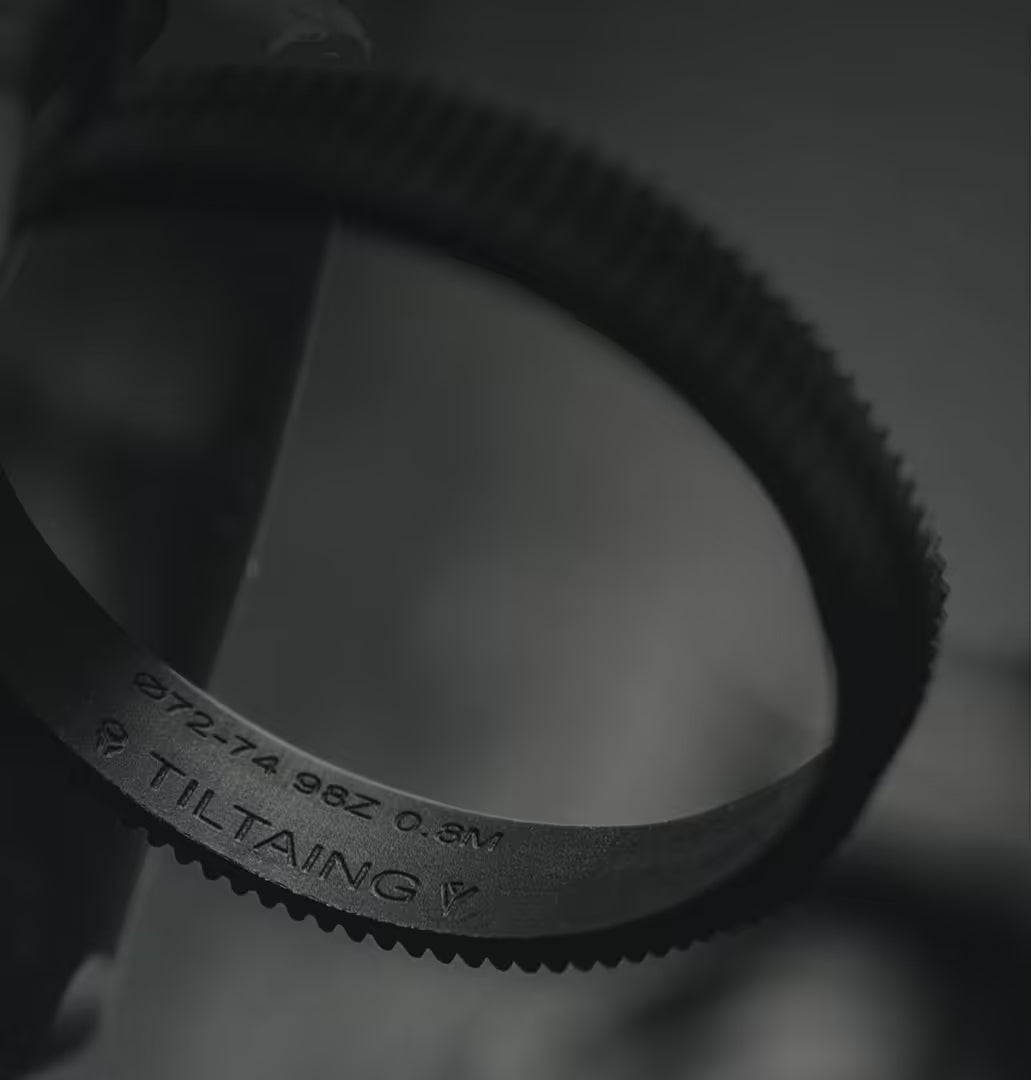

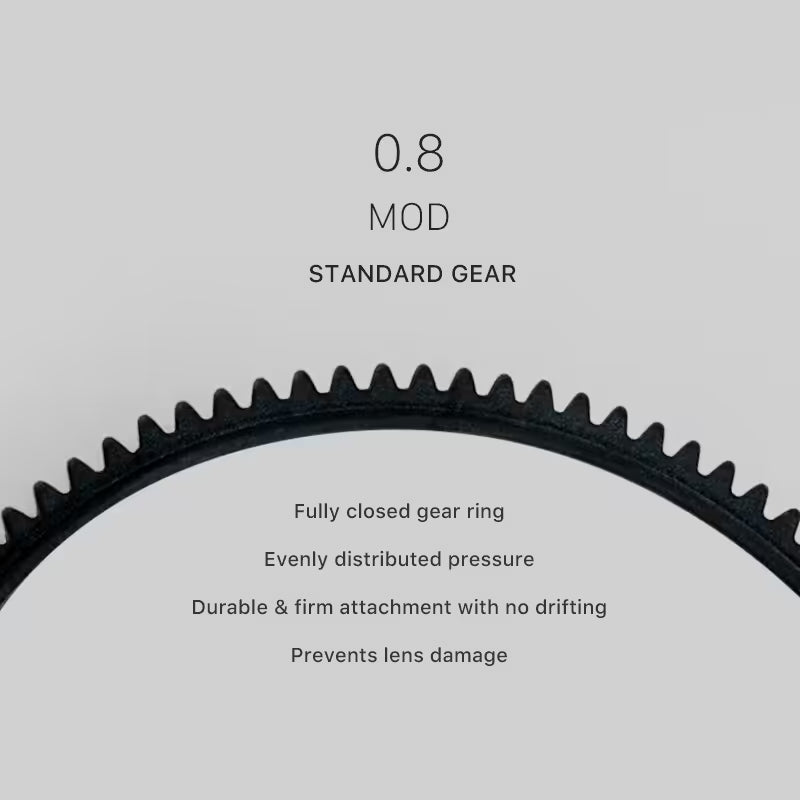

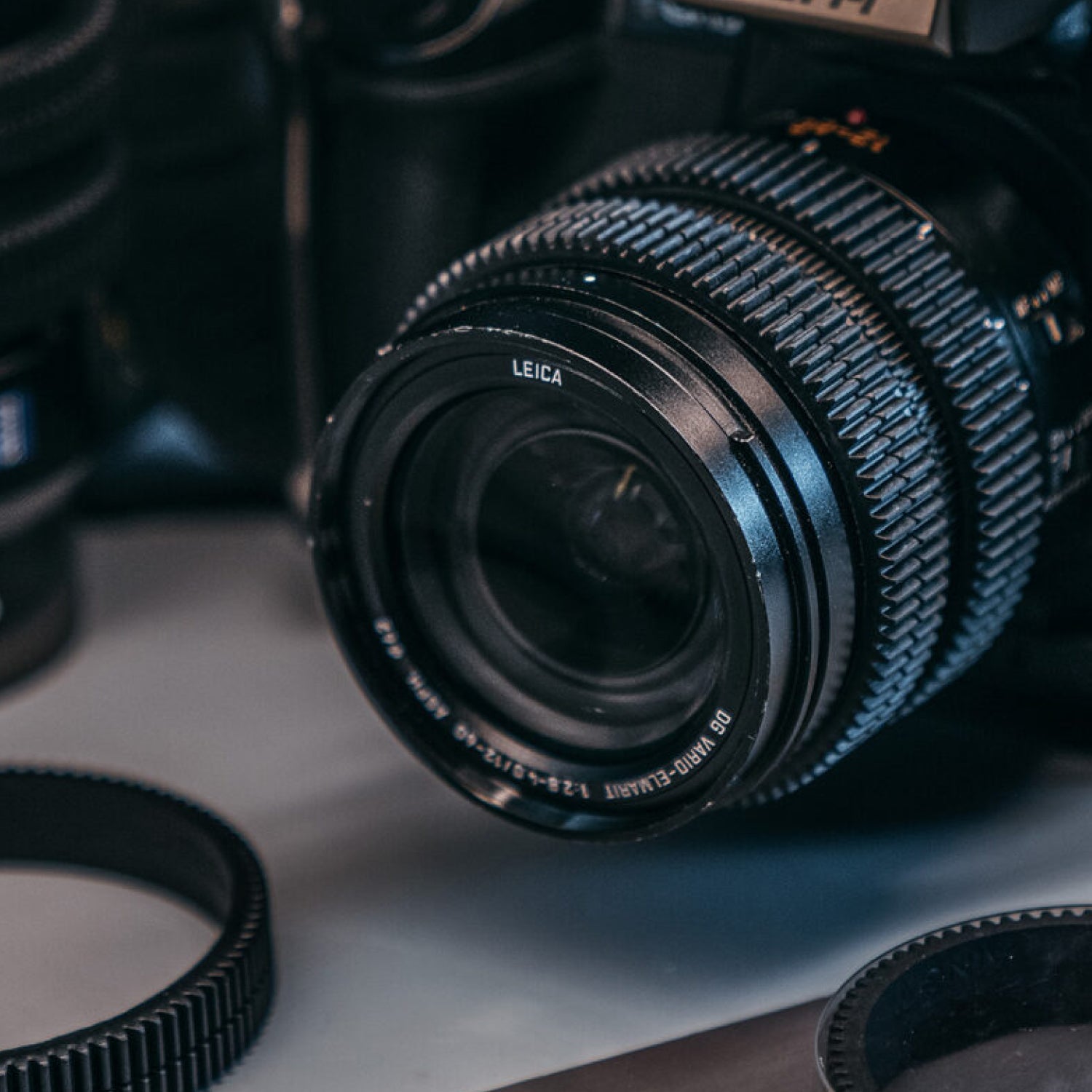

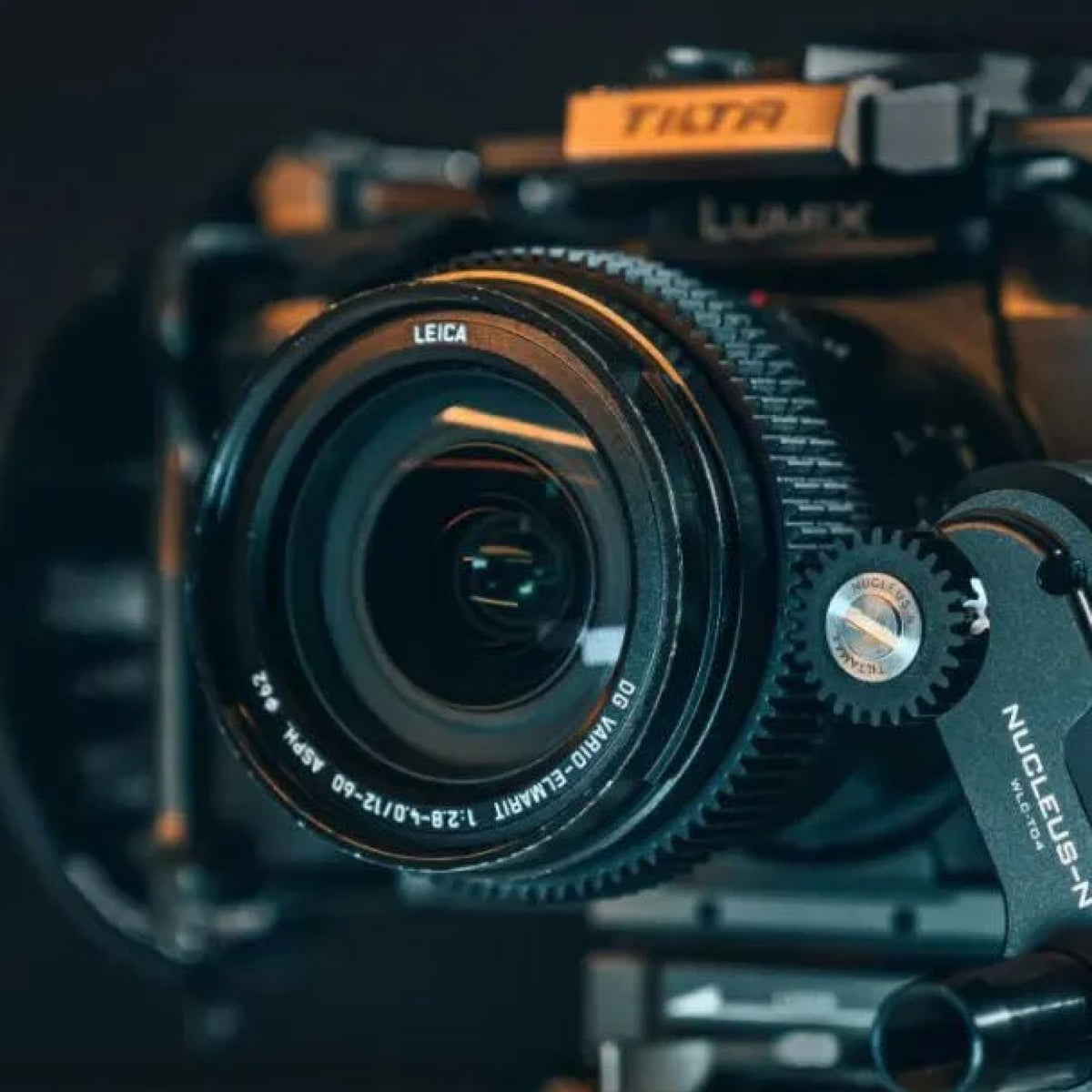

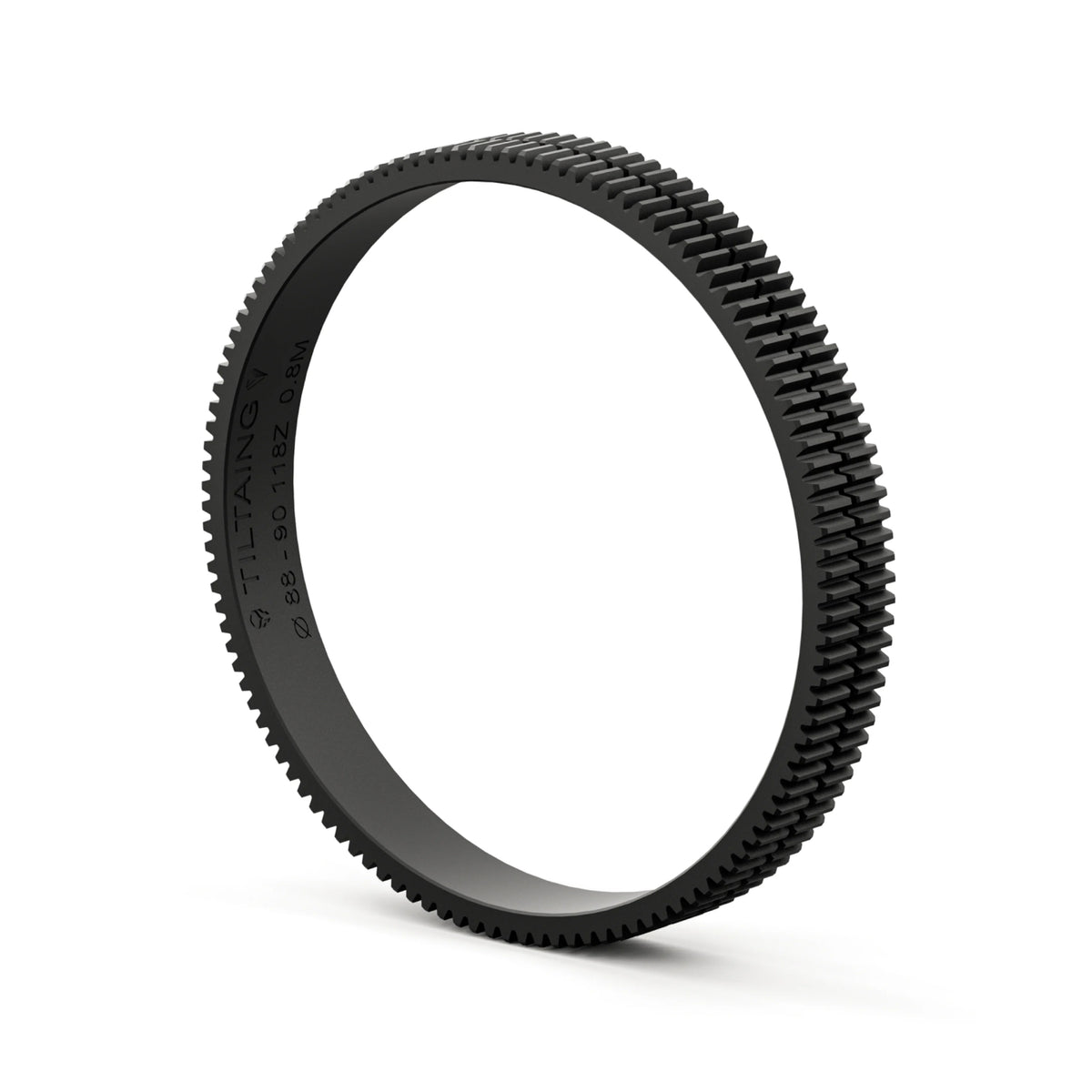

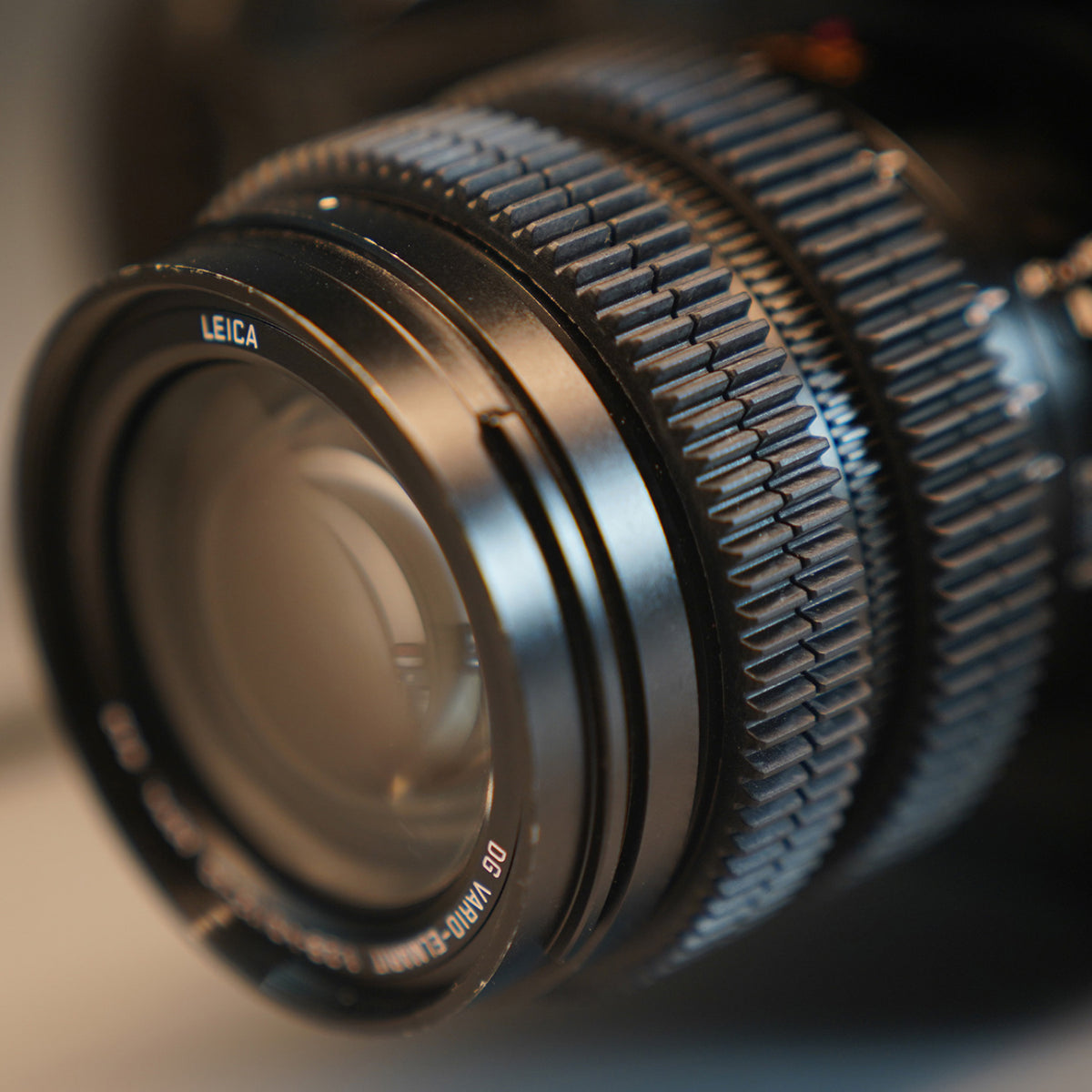

This seamless gear ring allows you to add a 0.8m toothed ring to photographic lenses to allow for the use of cinema follow focuses. Learn how to measure your lens to select the correct ring.

<!--

Sony Lenses

Zoom Ring

Focus Ring

FE 16-35mm F2.8 GM

78-80mm

81-83mm

FE 24-70mm F2.8 GM

81-83mm

81-83mm

FE 16-35mm F4 ZA

75-77mm

75-77mm

Vario-Tessar FE 24-70mm F4 ZA OSS

72-74mm

72-74mm

FE 70-200mm F/4 G OSS

75-77mm

78-80mm

FE 4/24-70 ZA OSS

72-74mm

72-74mm

FE 50mm F2.8 MACRO

*

69-71mm

FE 85mm F1.4 GM

*

88-90mm

Planar T* FE 50mm F1.4 ZA

*

81-83mm

E 10-18mm F4 OSS

69-71mm

69-71mm

FE 12-24mm F4 G

81-83mm

85-87mm

Zeiss E 16-70 F4 OSS

66-68mm

66-68mm

E PZ 18-105mm F4 G OSS

72-74mm

72-74mm

E PZ 18-200mm F3.5-6.3 OSS LE

66-68mm

66-68mm

FE 28mm F2

*

62.5-64.5mm

FE 55mm F1.8

*

62.5-64.5mm

FE 4/24-105 G OSS

*

62.5-64.5mm

E 3.5-5.6/PZ 16-50 OSS

*

62.5-64.5mm

FE 24mm F1.4 GM

*

75-77mm

FE 20mm F1.8 20G

*

69-71mm

E 55-210mm f/4.5-6.3 OSS

62.5-64.5mm

62.5-64.5mm

FE 35mm F1.8

*

62.5-64.5mm

Distagon T* FE 35mm F1.4 ZA

*

78-80mm

FE 90mm F2.8 G OSS

*

78-80mm

FE 70-300mm F4.5-5.6 G OSS

81-83mm

81-83mm

E 18-135mm F3.5-5.6 OSS

66-68mm

66-68mm

Canon Lenses

Zoom Ring

Focus Ring

EF 16-35mm f/2.8L III USM

78-80mm

81-83mm

EF 16-35mm f/2.8L II USM

78-80mm

81-83mm

EF 70-200mm f/2.8L IS II USM

78-80mm

81-83mm

EF 24-105mm F/4L IS USM

75-77mm

75-77mm

RF 24-105mm F/4.1-7.1 IS STM

78-80mm

75-77mm

EF 24-105mm F/4 IS II USM

75-77mm

75-77mm

EF 17-40mm F/4L USM

66-68mm

69-71mm

EF 70-200mm

62.5-64.5mm

69-71mm

EF 85mm F/1.8 USM

*

69-71mm

EF-S 18-135mm F/3.5-5.6 IS STM

72-74mm

75-77mm

EF-S 18-200mm F/3.5-5.6 IS

78-80mm

75-77mm

EF-S 18-55mm F/4-5.6 IS STM

59-61mm

59-61mm

EF-M 18-150mm F/3.5-6.3 IS STM

53-55mm

53-55mm

EF-S 18-135mm F/3.5-6.3 IS

69-71mm

72-74mm

EF 100mm F/2.8L IS USM

*

72-74mm

EF 50mm F/1.4 USM

*

66-68mm

EF-S 35mm F/2.8 IS STM

*

62.5-64.5mm

EF 70-300mm f/4-5.6 IS II USM

75-77mm

75-77mm

EF-S 15-85mm f/3.5-5.6 IS USM

72-74mm

75-77mm

EF-S 10-18mm f/4.5-5.6 IS STM

62.5-64.5mm

69-71mm

EF 70-300mm f/4-5.6L IS USM

85-87mm

81-83mm

EF 100mm f2 USM

*

75-77mm

TS-E 24mm f3.5L Tilt Shift

*

78-80mm

100mm f2.8L IS USM

*

81-83mm

Panasonic/Olympus Lenses

Zoom Ring

Focus Ring

LUMIX S PRO 24-70mm f/2.8

85-87mm

88-90mm

LUMIX S PRO 70-200mm f/2.8 O.I.S

85-87mm

*

LUMIX S 24-105mm F/4 Macro OIS

81-83mm

81-83mm

LUMIX S PRO 16-35mm f/4

81-83mm

85-87mm

LUMIX S PRO 70-200mm f/4 OIS

78-80mm

81-83mm

G VARIO 45-200mm f/4.0-5.6 MEGA OIS

69-71mm

69-71mm

LUMIX G VARIO 100-300mm f/4-5.6 MEGA OIS

72-74mm

69-71mm

LEICA DG 100-400mm f/4-6.3 ASPH POWER OIS

78-80mm

78-80mm

LEICA DG ELMARIT 200mm f/2.8 POWER OIS

*

85-87mm

LEICA DG Vario-Elmarit 50-200mm f/2.8-4 ASPH Power OIS

75-77mm

75-77mm

LUMIX G X VARIO 35-100mm f/2.8 II Power OIS

66-68mm

62.5-64.5mm

PANASONIC H-NS 42.5mm f/1.2

*

72-74mm

LUMIX S PRO 50mm f/1.4

*

88-90mm

LEICA DG Vario-Elmarit 12-60mm f/2.8-4 Power OIS

66-68mm

66-68mm

PANASONIC G VARIO 7-14mm f/4.0 ASPH

59-61mm

59-61mm

PANASONIC G 20mm f/1.7 ASPH

*

62.5-64.5mm

LEICA DG MACRO-ELMARIT 45mm f/2.8 ASPH MEGA OIS

*

62.5-64.5mm

LUMIX G MACRO 30mm f/2.8 ASPH MEGA OIS

*

56-58mm

LUMIX G 25mm f/1.7

*

59-61mm

LUMIX G VARIO 12-60mm f/3.5-5.6 Power OIS

66-68mm

62.5-64.5mm

LUMIX G 42.5mm f/1.7 ASPH POWER OIS

*

53-55mm

LUMIX G X VARIO 12-35mm f2.8II ASPH

*

66-68mm

12-35mm f2.8

66-68mm

66-68mm

OLYMPUS M.ZUIKO DIGITAL ED 12-40mm f/2.8 PRO

69-71mm

66-68mm

OLYMPUS M.ZUIKO DIGITAL ED 7-14mm f/2.8 PRO

69-71mm

69-71mm

OLYMPUS M.Zuiko Digital ED 25mm f/1.2 Pro

*

69-71mm

OLYMPUS M.Zuiko Digital ED 12-100mm f/4 IS PRO

*

72-74mm

Nikon Lenses

Zoom Ring

Focus Ring

Nikon AF-S 20mm f1.8G

*

72-74mm

Fujifilm Lenses

Zoom Ring

Focus Ring

FUJIFILM XF 8-16mm f/2.8 R LM WR

*

88-90mm

FUJIFILM 80mm f/2.8 R LM OIS WR Macro

*

78-80mm

FUJIFILM GF 45mm f/2.8 R

*

78-80mm

FUJIFILM GF 63mm f/2.8 R WR

*

78-80mm

FUJIFILM GF 23mm f/4.0 R LM WR

*

88-90mm

FUJIFILM GF 120mm f/4.0 R LM OIS WR Macro

*

88-90mm

FUJIFILM XF 16-55mm f/2.8 R LM WR

*

75-77mm

FUJIFILM XC 15-45mm f/3.5-5.6 OIS PZ

59-61mm

59-61mm

FUJIFILM XF 18mm f/2.0 R

*

62.5-64.5mm

FUJIFILM XF 14mm f/2.8 R

*

62.5-64.5mm

FUJIFILM XF 16mm f/1.4R WR

*

72-74mm

FUJIFILM XF 56mm f/1.2 R

*

72-74mm

FUJIFILM Super EBC XF 23mm f/1.4 R

*

72-74mm

FUJIFILM XF 90mm f/2.0 R LM WR

*

75-77mm

Sigma Lenses

Zoom Ring

Focus Ring

SIGMA 24-70mm f/2.8 EX DG HSM

88-90mm

88-90mm

SIGMA 14-24mm f/2.8 DG HSM Art

88-90mm

88-90mm

SIGMA 12-24mm f/4.0 DG HSM Art Zoom Lens

81-83mm

81-83mm

SIGMA 24-35mm f/2.0 DG HSM Art

78-80mm

85-87mm

SIGMA 70mm f/2.8 DG Macro Art

*

72-74mm

SIGMA 35mm f/1.4 DG HSM Art

*

78-80mm

Tokina Lenses

Zoom Ring

Focus Ring

11-16mm f/2.8

*

72-74mm

DU Lenses

Zoom Ring

Focus Ring

85mm f/2

*

62.5-64.5mm

Zeiss Lenses

Zoom Ring

Focus Ring

Zeiss Milvus 15mm f/2.8

*

78-80mm

Zeiss Milvus 21mm f/2.8

*

69-71mm

Zeiss Milvus 25mm f/1.4

*

81-83mm

Zeiss Milvus 35mm f/2

*

72-74mm

Zeiss Milvus 35mm f/1.4

*

88-90mm

Zeiss Milvus 50mm f/1.4

*

78-80mm

Zeiss Milvus 135mm f/2

*

85-87mm

-->

Packing List

  • 1: Seamless Focus Gear Ring

Technical Data

Seamless Focus Gear Ring

  • Colors: Black Materials: Rubber If you would like to customize a focus gear ring, please provide us with the following information:
  • Additional Information: Spread out the paper slip and measure the distance between the two marks with a ruler in millimeters and then divide that number by 3.14. That number willl be the diameter of your lens. For example, if the two marks are 255mm apart, divide 255mm by 3.14 and you will have a diameter of 81.2mm. The focus ring size for your lens would be 81-83mm.
€2,00 €0,00
  • 5 stars: 31 (94%)
  • 4 stars: 0 (0%)
  • 3 stars: 2 (6%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Anonymous

These are very well made rings. Excellent quality

A
Anonymous

If you use focusing rings, why wouldn?‘t you go seamless?

They?‘re exactly what they?‘re advertised to be and such a game changer after using the ?~cut-to-size?for so many years.

When you figure out the size you need, order an extra one or two to keep if you lose one. At the price they are, why wouldn?‘t you?

A
Anonymous

Excellent value and function

A
Alan Charles

Make sure you double check you measured the correct dimension. Seems durable.

A
Anonymous

The entire system is a quality build and really easy to use.

J
Joe Banko

I also bought 3 larger (74MM) for my Nikon lens which needed a very wide ring. The rings were 1/2?wide with scoring down the center to cut them to 1/4? I needed (2) 1/2?rings and (1) 1/4?ring to facilitate driving the full length of the lens. I carefully lined up the 3 rings so they matched and they are currently working just fine with my edelkrone Focus Module.

K
Kristoffer Lauritzen

Perfect fit. Divides into two if needed.

K
Kristoffer Lauritzen

Perfect fit. Good price.

A
Anonymous

Very good quality, feet perfectly!

D
Don Starnes

I got 6 of them: all of the rings fit well on my lenses

A
Anonymous

It fits well and I love how I can get great quality with a good price!

P
Paden Ramsey

I bought the 72-74mm rings for my Tokina 11-16, and they work fantastic. They grip the lens very well, but do not stretch out enough to create slipping. As long as you know the diameter of your lens, you will be very happy. Excellent Product.

A
Andrea Gavil“⊿nez

They are much better than the ones that come with the ronin, these are placed and ready to use. They do not move and are the best $2.00 invested for me.

A
Andrea Gavil“⊿nez

nice gear

A
Anonymous

The Tilta focus gear rings are quality products, made in the right size ranges and shockingly inexpensive. They are a terrific value.

M
Mark Nicholson

They are perfect. Low price, grippy and just work. Adding them to all my lenses

B
BRAIDEN GRAHAM

I ordered a few for my personal lenses and loved them so much that i bought a set of each size so I always have one for whatever lens I get or if a friend needs one.
highly recommend, makes it very easy to set up focus motors, especially on a gimbal.

C
Chris Verge

The gear rings we were supplied worked great.

S
Stepan Opryshko

What Seamless Focus Gear Ring size to Canon RF 28-70mm f/2 L USM?

K
Klaus

I bought them on Ebay and they make a great job! Great price! Thank you!

s
systemsfail

These seamless rings are the best! I tried one out and ended up getting them for ALL of my lenses. They are even comfortable to operate when not using a follow focus.

K
Kaku Ito

Although selecting the right diameter, when you fit the ring to the lens, if the lens' construction isn't really strong, it makes the focus or zoom to get tighten so the lens motor skips on the gear rings. If that happens, you should get larger one and use tapes to fit the size.

R
Ronald Donbrosky

I got these to upgrade some FSU lenses and they worked out perfectly. Very happy and plan to upgrade some more.

R
Rafael Bautista

satisfied with the product, I loved it

c
curtis

Buy these direct from tilta if you are Canadian. Amazon wants $17 each!
The price is unbeatable. Measure your focus ring and divide by pie to get the diameter that you need.
The gears grip well on a follow focus and do not shift. If you are finding your lens between two sizes buy the large one and add some gaff tape to your lens ring to fill the space.
I?‘ll be buying more.

T
Thomas Klinect

In a time where most things I receive either don't work or are defective (all due to COVID I am told), the rings came in and work perfectly the first time. I have multiple lenses and they all worked first time. I did not split the rings as there is currently no need for that; but I am sure the N-M drives will not have an issue with a thinner ring. Well made, perfect fix...thank you Tilta.

G
George Nicholson

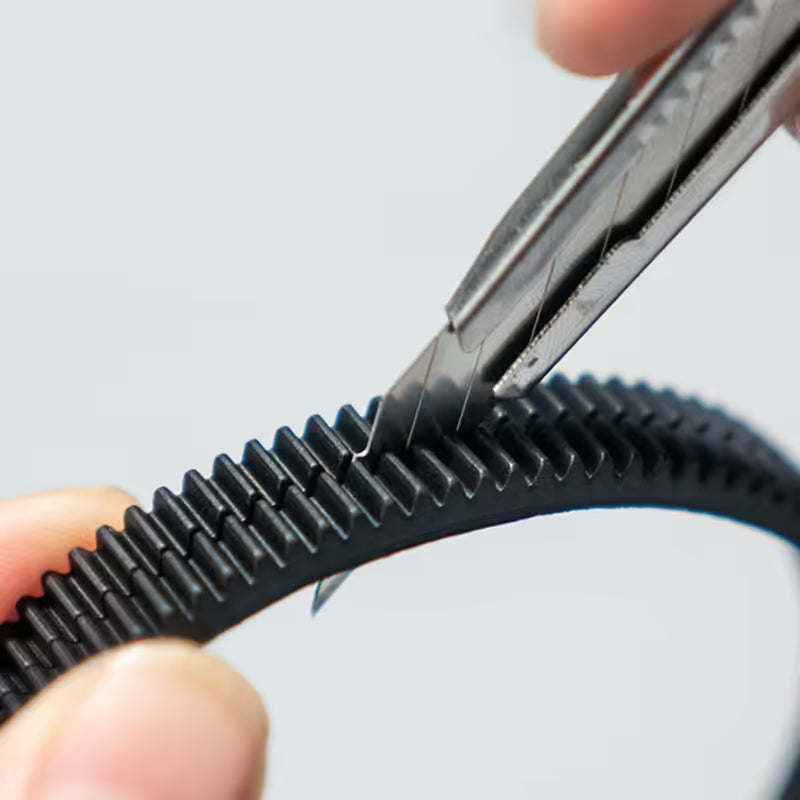

I have six of these and they are a perfect fit for each lens.I even 'split' one with an exact knife allowing
