Hydra Arm Mini Modification Kit for DJI Ronin 2

Free shipping on EU orders over 150 € (Excludes orders requiring shipment from China) More Info →
(Terms & conditions apply)

UVP: -10%593,10
705,79  inc VAT

Available for Pre-Order (Learn More)
Shipping in 2-4 weeks.

SKU: HDA-T08-MK-R2 Category:
EAN 6937134607642

Returns are accepted within 21 days, with some exceptions. Read more →



Hydra Arm Mini Modification Kit for DJI Ronin 2

Features

Hydra Arm Mini Modification Kit for DJI Ronin 2

Shock Absorbing Spring

The original spring on the Hydra Mini Arm has a limited payload capacity. Included in the modification kit is an upgraded spring for the shock absorbing arm. This means the payload capacity of the shock arm has been increased to 8kg-13kg (17.6lb-28.6lb).

Hydra Arm Mini Modification Kit for DJI Ronin 2

Shock Absorbing Head

Due to the increased demand for stronger shock absorption when mounting the Ronin 2, we have replaced the original polyurethane material of the shock absoring head with steel wire. This eliminates high-frequency vibrations, ensuring stable gimbal performance.

Hydra Arm Mini Modification Kit for DJI Ronin 2

Mount Adapter for DJI Ronin 2

In order to easily integrate the Ronin 2 with our system, we specially designed a mount adapter for it.

Hydra Arm Mini Modification Kit for DJI Ronin 2

Support Cables

Utilize a 2-arm setup through the use of shorter support cables, which improves flexibility when filming in tight shooting environments.

Hydra Arm Mini Modification Kit for DJI Ronin 2

Description

  • [UPGRADE KIT] Improves Performance of Hydra Arm Mini When Using Heavier Payloads.
  • [INCREASED PAYLOAD] Supports Gimbal & Camera Builds Between 8kg-13kg or 17.6lbs-28.6lbs
  • [SHORTER CONFIGURATION] Improves Flexibility for Shooting in Tight Spaces or Navigating Environmental Hazards
  • [EASY TO INSTALL] Kit Can Be Installed or Uninstalled Quickly for Maximum Flexibility
  • [CUSTOM DESIGNED] Mounting Plate for the DJI Ronin 2 Gimbal Body Does Not Require Additional Mounting Accessories

Introducing the first major upgrade to the Hydra Arm Mini.

This Modification Kit updates the system in order to be compatible with the DJI Ronin 2 Gimbal Body.

By installing a few new components, users can increase the payload capacity of their system to support payloads between 8kg-13kg or 17.6lb-28.6lbs when using a two arm configuration.

This opens up more creative possibilities for heavier camera and lens combinations, as well as helps create smoother footage by taking advantage of the stronger motors on larger gimbals like the Ronin 2, which is especially useful at higher speeds.

The first component of the kit is shortened support cables which will allow users to build the arm with only two pieces.

This does limit the reach of the arm, but has an advantage when being used in tight spaces or when navigating environmental hazards.

This two arm setup will be required in order to utilize the higher payload capacity needed to properly support the Ronin 2.

The next component of the kit is the Heavy Duty Shock Absorbing head which now uses Steel Wire to absorb vibration as opposed to the original’s Polyurethane material.

This means that the Shock Absorbing Head is better suited for heavier payloads and can be easily swapped with the original via a quick release plate.

One of the most important components of this kit is the heavy duty spring for the shock absorbing arm. This spring replaces the original one included with the arm and can support the higher payload.

Lastly, the kit includes a custom designed Ronin 2 Mount for the gimbal body that allows users to quickly and securely mount the gimbal to the head without needing an additional adapter.

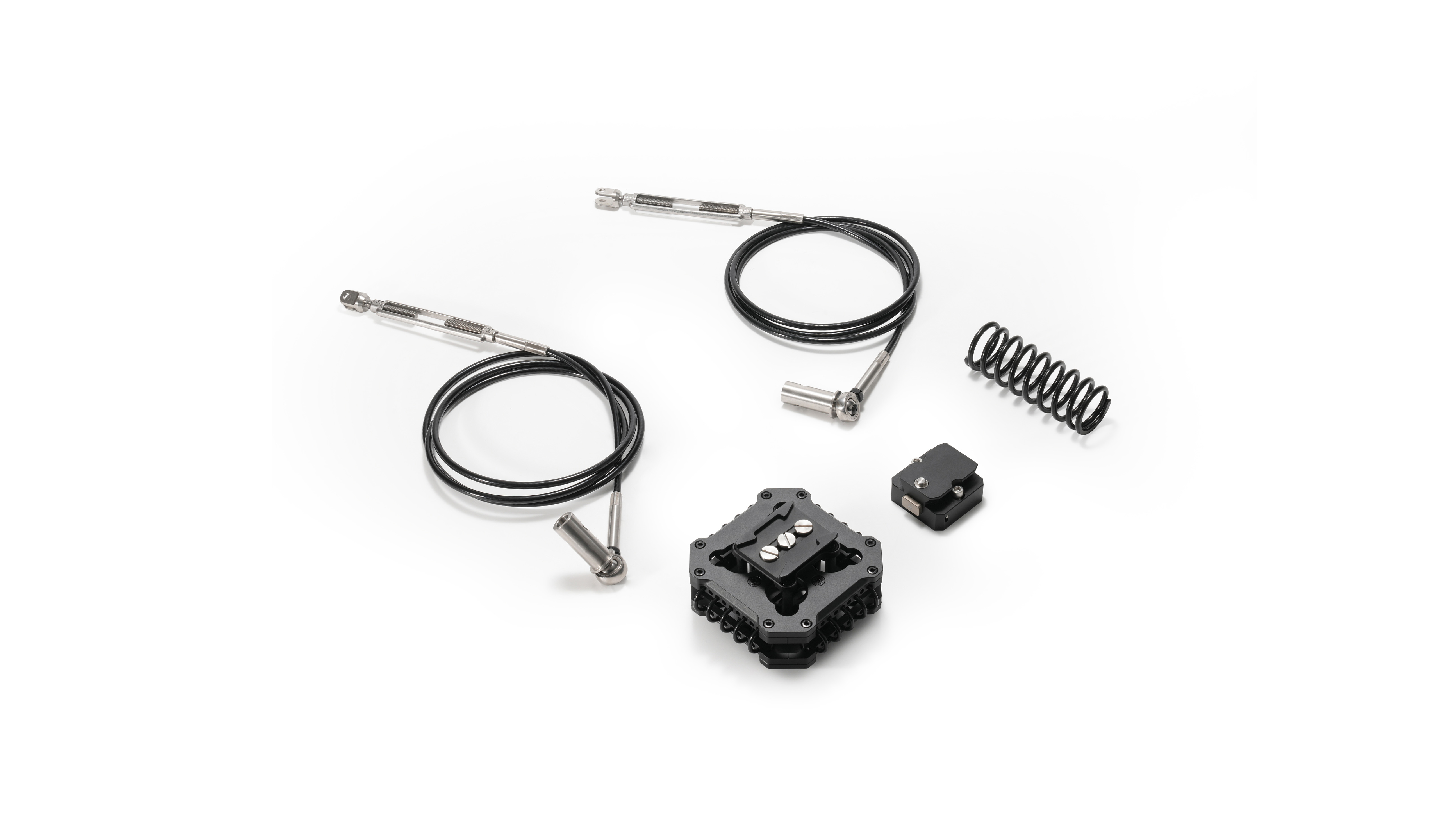

1:Shock Absorbing Head*1
2:Mount Adapter for DJI Ronin 2*1
3:Shock Absorbing Spring*1
4:Support Cable(length 2m)*2″

Dimensions: 32 x 25 x 11 cm

Weight: 2.28 kg

Materials: Aluminum Alloy, Stainless Steel

Colour: Black

Optional Accessories

Add a review
Hydra Arm Mini Modification Kit for DJI Ronin 2 Hydra Arm Mini Modification Kit for DJI Ronin 2
Rating*
0/5
* Rating is required
* Title is required
Your review *
* Review is required
Name *
* Name is required
Add photos or video to your review

Customer Reviews

0.0
Based on 0 reviews
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

Ask a question

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

0 of 0 reviews

Sorry, no reviews match your current selections

MM
Mike M. 03/12/2024
How long is the arm with Ronin 2 mod kit? Will Ronin 2 ever get 360 roll? Is there a demo center I can try the arm? I am in Southern California.ThanksMike
T
Tilta answered on 03/12/2024

The arm is 9.4 ft when used in the shorter configuration for Ronin 2! You can stop by our Burbank showroom to see the arm which is currently on display: https://eu.tilta.com/contact/

(0) (0)
MM
Mike M. 03/12/2024
I am interested in the hydra arm with Ronin 2 Kit. Curious how long the arm is with this setup? If mounted on top of a mid sized truck how close to the ground can you get the camera. I also must ask why 360 roll has never been implemented on Ronin 2?Are there any places to demo the hydra arm in Southern California. I live in Oceanside.ThanksMike
